Iscar ISCAR 5606070

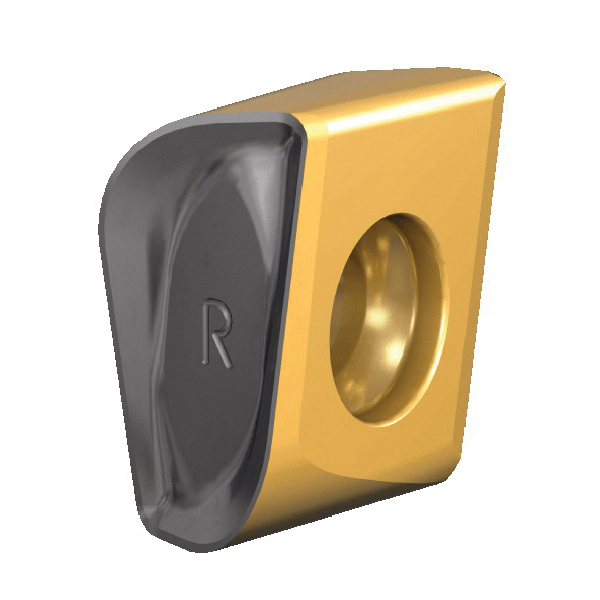

Iscar 5606070 HELITANG 4-Helical Cutting Edge Tangentially Clamped Milling Insert, ANSI Code: T490 LNHT 130631PNTR, T490 Insert, 130631 Insert, Manufacturers Grade: IC330
Invoice description:
T490 Lnht 130631pntr 330
Pack Size: 10
UNSPSC:
23291601
Manufacturer PN: 5606070
$43.73 EA
Factory OrderEstimated to ship in 14 days
Iscar Milling Insert, 4-Helical Cutting Edge Tangentially Clamped, Series: HELITANG, T490 Insert, 130631 Insert, 6.65 mm Thickness, 12.37 mm Width, 13.81 mm Length, 3.1 mm Corner Radius, Manufacturers Grade: IC330, ANSI Code: T490 LNHT 130631PNTR, ISO Code: T490 LNMT/LNHT 1306
Features
- The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts
Specifications
ApplicationBoring
ANSI CodeT490 LNHT 130631PNTR
Corner Radius3.1 mm
Insert Size130631
Insert StyleT490
ISO CodeT490 LNMT/LNHT 1306
Length13.81 mm
Manufacturers GradeIC330
SeriesHELITANG
Thickness6.65 mm
Type4-Helical Cutting Edge Tangentially Clamped
Width12.37 mm
Additional Information
Standards/ApprovalISO 13399
