Iscar ISCAR 5606068

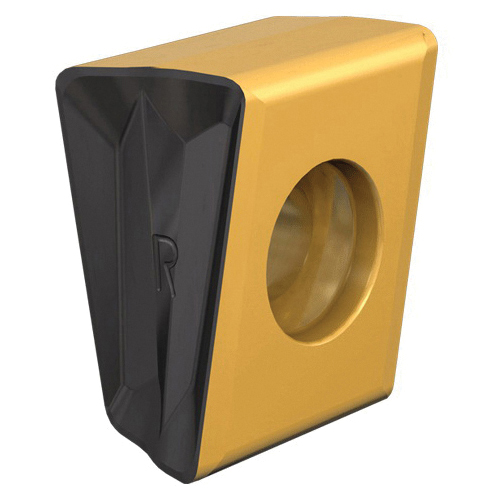

Iscar 5606068 HELITANG 4-Helical Cutting Edge Milling Insert, ANSI Code: T490 LNHT 130624PNTR, T490 Insert, 130624 Insert, Manufacturers Grade: IC330
Invoice description:
T490 Lnht130624 Ic330 Milling Insert
Pack Size: 10
UNSPSC:
23291601
Manufacturer PN: 5606068
$43.73 EA
Factory OrderEstimated to ship in 14 days
Iscar Milling Insert, 4-Helical Cutting Edge, Series: HELITANG, T490 Insert, 130624 Insert, 0.262 in Thickness, 0.262 in Width, 0.543 in Length, 0.094 in Corner Radius, Manufacturers Grade: IC330, ANSI Code: T490 LNHT 130624PNTR, ISO Code: T490 LNMT/LNHT 1306
Features
- HELITANG - Tangentially clamped inserts with 4 helical cutting edges
- The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts
Specifications
ApplicationMilling
ANSI CodeT490 LNHT 130624PNTR
Corner Radius0.094 in
Insert Size130624
Insert StyleT490
ISO CodeT490 LNMT/LNHT 1306
Length0.543 in
Manufacturers GradeIC330
SeriesHELITANG
Thickness0.262 in
Type4-Helical Cutting Edge
Width0.262 in
Additional Information
Standards/ApprovalISO 13399
