Iscar ISCAR 5606056

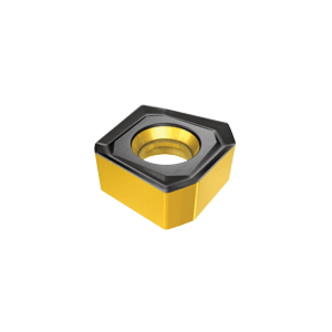

Iscar 5606056 HELIDO 800 LINE Double Sided Milling Insert With 8 Cutting Edges, SNMU Insert, 1305 Insert, Carbide, Manufacturers Grade: IC808, Squared Shape, Material Grade: H, K, M, P, S
Invoice description:
S845 Snmu 1305anr-mmic80 8
Factory Order
Iscar Milling Insert, Double Sided, Series: HELIDO 800 LINE, SNMU Insert, 1305 Insert, Squared, 13 mm Inscribed Circle, 6.2 mm Thickness, 13 mm Width, 13 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, 0 deg Lead Angle, Manufacturers Grade: IC808, ISO Code: S845 SNMU 1305ANR-MM IC808, Right Hand, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationFacing, Fast Feed Milling, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Inscribed Circle13 mm
Insert Size1305
Insert StyleSNMU
ISO CodeS845 SNMU 1305ANR-MM IC808
Lead Angle0 deg
Length13 mm
Manufacturers GradeIC808
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELIDO 800 LINE
ShapeSquared
Thickness6.2 mm
TypeDouble Sided
Width13 mm
Additional Information
Country of OriginIL
