Iscar ISCAR 5606055

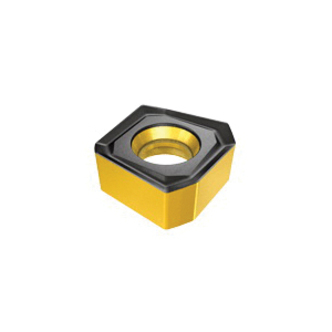

Iscar 5606055 HELIDO 800 LINE Double Sided Milling Insert With 8 Cutting Edges, SNMU Insert, 1305 Insert, Carbide, Squared Shape
Invoice description:
S845 Snmu 1305anr-mm 405
Factory Order

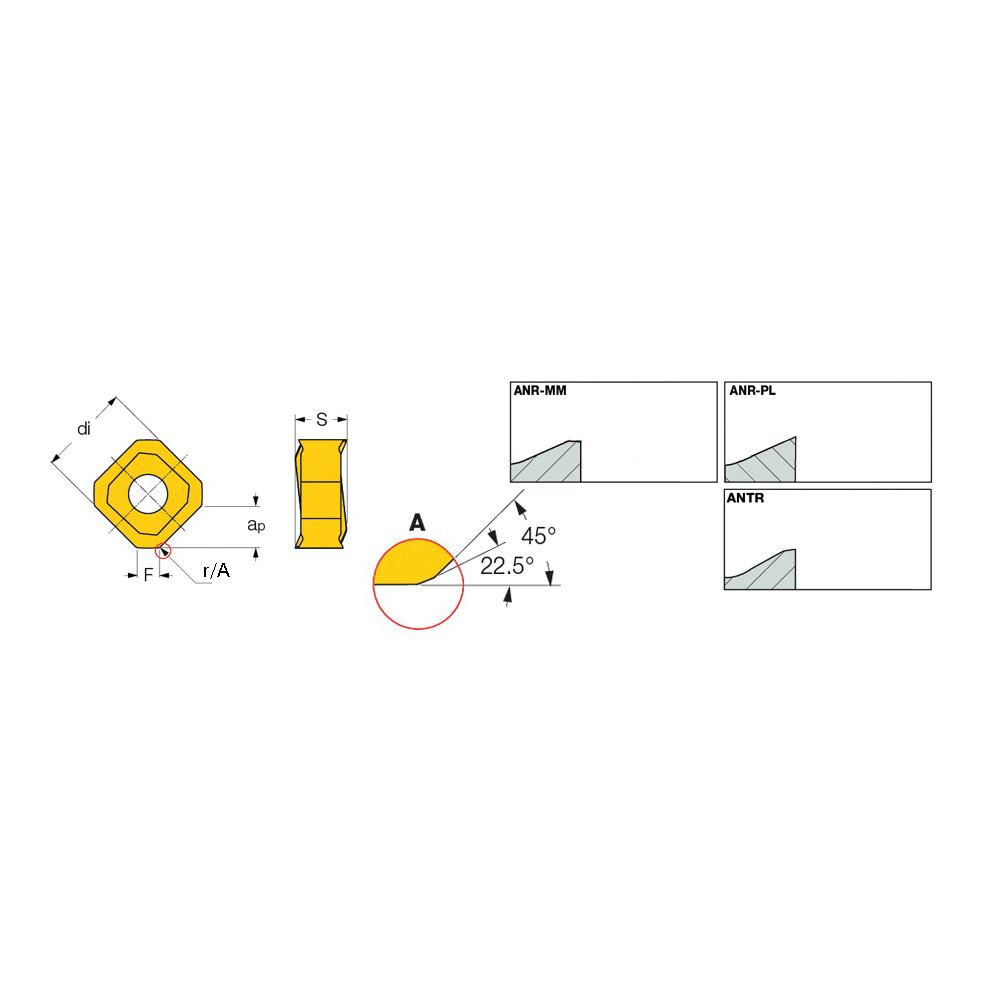

Iscar Milling Insert, Double Sided, Series: HELIDO 800 LINE, SNMU Insert, 1305 Insert, Squared, 13 mm Inscribed Circle, 6.2 mm Thickness, 13 mm Width, 13 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, 45 deg Lead Angle, ISO Code: S845 SNMU 1305ANR-MM, Right Hand, Carbide
Specifications
ApplicationFacing, Fast Feed Milling, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.8 mm
Hand of InsertRight
Inscribed Circle13 mm
Insert Size1305
Insert StyleSNMU
ISO CodeS845 SNMU 1305ANR-MM
Lead Angle45 deg
Length13 mm
MaterialCarbide
SeriesHELIDO 800 LINE
ShapeSquared
Thickness6.2 mm
TypeDouble Sided
Width13 mm
Additional Information
Country of OriginIL
