Iscar ISCAR 5606031

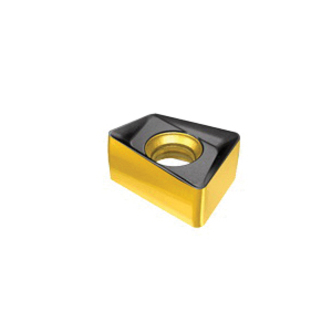

Iscar 5606031 HELIDO 490 LINE Double Sided Milling Insert With 4 Helical Cutting Edges, ANCX Insert, 090404 Insert, Carbide, Manufacturers Grade: IC808, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S
Invoice description:
H490 Ancx 090404pdr Ic80 8
Factory Order
Iscar Milling Insert, Double Sided, Series: HELIDO 490 LINE, ANCX Insert, 090404 Insert, 85 deg Parallelogram Shape, 5.2 mm Thickness, 6.5 mm Width, 8.52 mm Length, PDR Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: H490 ANCX 090404PDR IC808, Right Hand of Insert, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationCounterboring, Facing, Shouldering and Slotting
ChipbreakerPDR
Corner Radius0.4 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Insert Size090404
Insert StyleANCX
ISO CodeH490 ANCX 090404PDR IC808
Length8.52 mm
Manufacturers GradeIC808
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELIDO 490 LINE
Shape85 deg Parallelogram
Thickness5.2 mm
TypeDouble Sided
Width6.5 mm
Additional Information
Country of OriginIL
