Iscar ISCAR 5605595

Iscar 5605595 HELIDO 490 LINE Double Sided Milling Insert With 4 Helical Cutting Edges, ANCX Insert, 170608 Insert, Carbide, Manufacturers Grade: IC908, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S

Invoice description: H490 Ancx 170608pdr 908

UNSPSC: 23242107

Manufacturer PN: 5605595

^$44.27 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

Iscar Milling Insert, Double Sided, Series: CoroCut 1-2, ANCX Insert, 170608 Insert, 85 deg Parallelogram, 10.4 mm Thickness, 11.2 mm Width, 16.7 mm Length, PDR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: H490 ANCX 170608PDR IC908, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

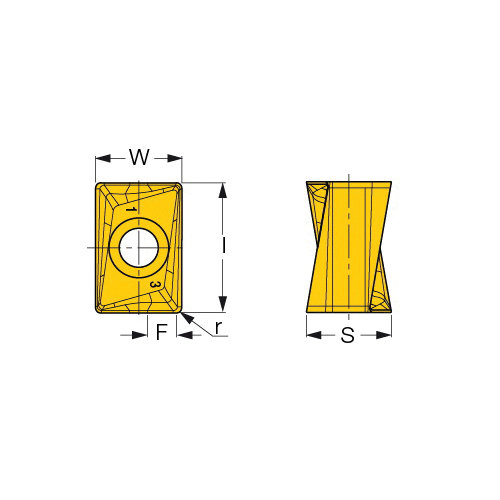

Specifications

ApplicationCounterboring, Facing, Shouldering and Slotting

ChipbreakerPDR

Corner Radius0.8 mm

FinishPVD-TiAlN Coated

Hand of InsertRight

Insert Size170608

Insert StyleANCX

ISO CodeH490 ANCX 170608PDR IC908

Length16.7 mm

Manufacturers GradeIC908

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesHELIDO 490 LINE

Shape85 deg Parallelogram

Thickness10.4 mm

TypeDouble Sided

Width11.2 mm
