Iscar ISCAR 5605566

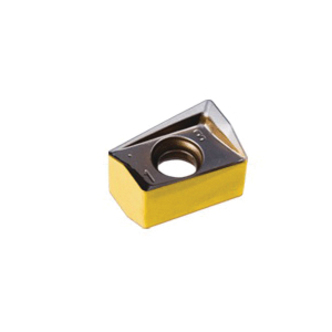

Iscar 5605566 HELIDO 490 LINE Double Sided Milling Insert With 4 Helical Cutting Edges, ANKX Insert, 120508 Insert, Carbide, Manufacturers Grade: IC808, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S
Invoice description:
H490 Ankx 120508pntr 808
Factory Order

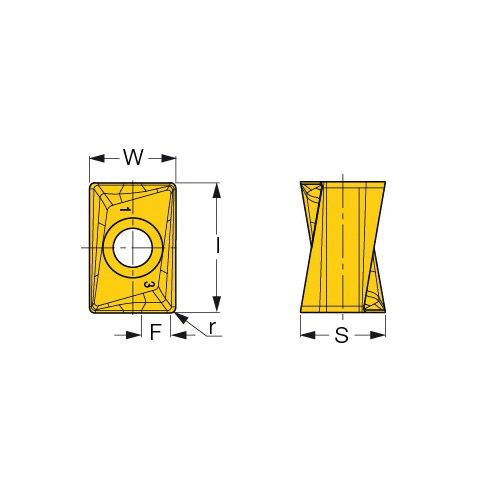

Iscar Milling Insert, Double Sided, Series: HELIDO 490 LINE, ANKX Insert, 120508 Insert, 85 deg Parallelogram, 9.15 mm Thickness, 10 mm Width, 13.67 mm Length, PNTR Chipbreaker, 0.6 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: H490 ANKX 120508PNTR IC808, Right Hand, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationCounterboring, Facing, Shouldering, Slotting and Side Plunging
ChipbreakerPNTR
Corner Radius0.6 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Insert Size120508
Insert StyleANKX
ISO CodeH490 ANKX 120508PNTR IC808
Length13.67 mm
Manufacturers GradeIC808
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELIDO 490 LINE
Shape85 deg Parallelogram
Thickness9.15 mm
TypeDouble Sided
Width10 mm
Additional Information
Country of OriginIL
