Iscar ISCAR 5605451

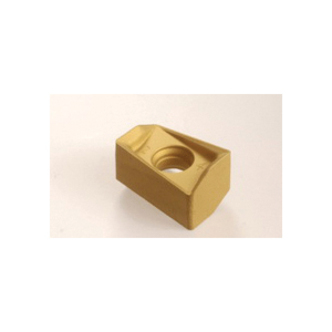

Iscar 5605451 HELIDO 490 LINE Double Sided Milling Insert With 4 Helical Cutting Edges, ANKX Insert, 170608 Insert, Carbide, Manufacturers Grade: IC4100, 85 deg Parallelogram Shape, Material Grade: H, K

UNSPSC: 23242107
Manufacturer PN: 5605451
$32.14 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Double Sided, Series: HELIDO 490 LINE, ANKX Insert, 170608 Insert, 85 deg Parallelogram Shape, 11.2 mm Thickness, 11.2 mm Width, 16.7 mm Length, PNTR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC4100, ISO Code: H490 ANKX 170608PNTR IC4100, Right Hand of Insert, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, Cast Iron, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationCounterboring, Facing, Shouldering and Slotting
ChipbreakerPNTR
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertRight
Insert Size170608
Insert StyleANKX
ISO CodeH490 ANKX 170608PNTR IC4100
Length16.7 mm
Manufacturers GradeIC4100
MaterialCarbide
Material ApplicationCast Iron, Hard Steel and Hardened Cast Iron
Material GradeH, K
SeriesHELIDO 490 LINE
Shape85 deg Parallelogram
Thickness11.2 mm
TypeDouble Sided
Width11.2 mm
