Iscar ISCAR 5605450

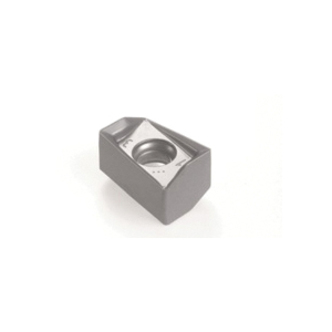

Iscar 5605450 HELIDO 490 LINE Double Sided Milling Insert With 4 Helical Cutting Edges, ANKX Insert, 170608 Insert, Carbide, Manufacturers Grade: IC908, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S
Invoice description:
H490 Ankx 170608pntr 908
Factory Order
Iscar Milling Insert, Double Sided, Series: HELIDO 490 LINE, ANKX Insert, 170608 Insert, 85 deg Parallelogram, 10.4 mm Thickness, 11.2 mm Width, 16.7 mm Length, PNTR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: H490 ANKX 170608PNTR IC908, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Features
- Double sided rectangular inserts with 4 helical cutting edges
- Very strong construction, may be used for heavy applications (HELIDO 490 line)
Specifications
ApplicationCounterboring, Facing, Shouldering and Slotting
ChipbreakerPNTR
Corner Radius0.8 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size170608
Insert StyleANKX
ISO CodeH490 ANKX 170608PNTR IC908
Length16.7 mm
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELIDO 490 LINE
Shape85 deg Parallelogram
Thickness10.4 mm
TypeDouble Sided
Width11.2 mm
Additional Information
Country of OriginIL
