Iscar ISCAR 5605443

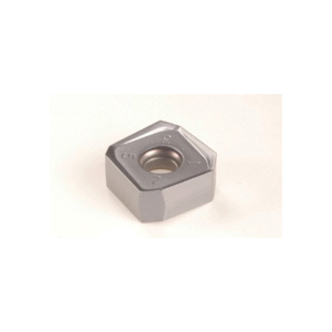

Iscar 5605443 HELIDO 845 LINE Double Sided Milling Insert With 8 Helical Right Hand Cutting Edges, SXMU Insert, 1606 Insert, Carbide, Manufacturers Grade: DT7150, Squared Shape, Material Grade: H, K

UNSPSC: 23242107
Manufacturer PN: 5605443
$38.96 EA
Factory Order
Estimated to ship in 14 days
QTY:

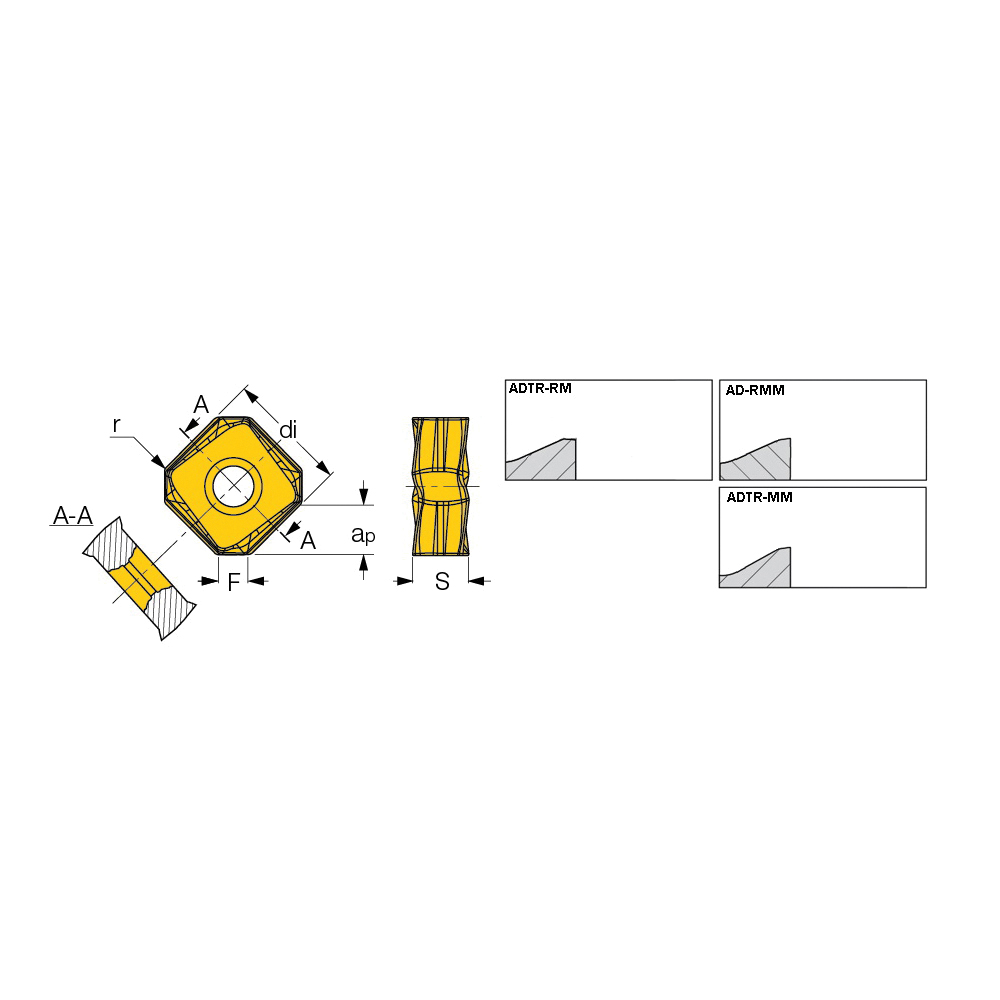

Iscar Milling Insert, Double Sided, Series: HELIDO 845 LINE, SXMU Insert, 1606 Insert, Squared Shape, 16.35 mm Inscribed Circle, 7.45 mm Thickness, 16.35 mm Width, 16.35 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: DT7150, ISO Code: S845 SXMU 1606ADTR-MM DT7150, Right Hand of Insert, Carbide, MTCVD-Al2O3/PVD-TiAlN Coated, Material Grade: H, K, Cast Iron, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.8 mm
FinishMTCVD-Al2O3/PVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle16.35 mm
Insert Size1606
Insert StyleSXMU
ISO CodeS845 SXMU 1606ADTR-MM DT7150
Length16.35 mm
Manufacturers GradeDT7150
MaterialCarbide
Material ApplicationCast Iron, Hard Steel and Hardened Cast Iron
Material GradeH, K
SeriesHELIDO 845 LINE
ShapeSquared
Thickness7.45 mm
TypeDouble Sided
Width16.35 mm
