Iscar ISCAR 5605429

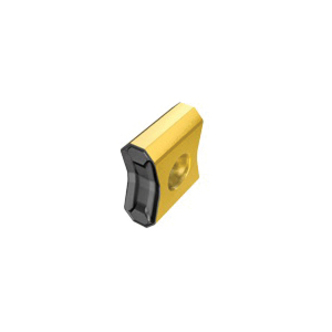

Iscar 5605429 TANGMILL TANGENTIAL LINE Single Sided Milling Insert, LNMT Insert, 150608 Insert, Carbide, Manufacturers Grade: IC4100, Rectangle Shape, Material Grade: H, K

UNSPSC: 23242107
Manufacturer PN: 5605429
$28.38 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided, Series: TANGMILL TANGENTIAL LINE, LNMT Insert, 150608 Insert, Rectangle Shape, 12.9 mm Thickness, 6 mm Width, 15.3 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC4100, ISO Code: LNMT 150608ANTN MM IC4100, Neutral Hand of Insert, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, Cast Iron, Hard Steel and Hardened Cast Iron Material Application

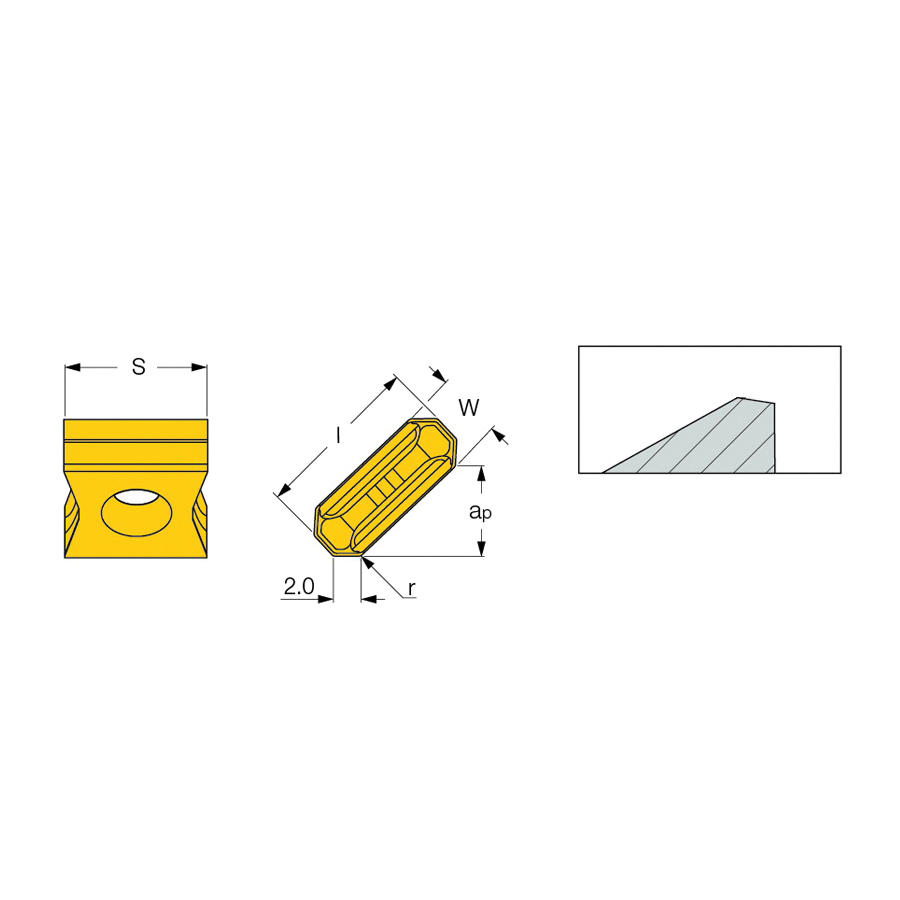

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertNeutral
Insert Size150608
Insert StyleLNMT
ISO CodeLNMT 150608ANTN MM IC4100
Length15.3 mm
Manufacturers GradeIC4100
MaterialCarbide
Material ApplicationCast Iron, Hard Steel and Hardened Cast Iron
Material GradeH, K
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness12.9 mm
TypeSingle Sided
Width6 mm
