Iscar ISCAR 5605420

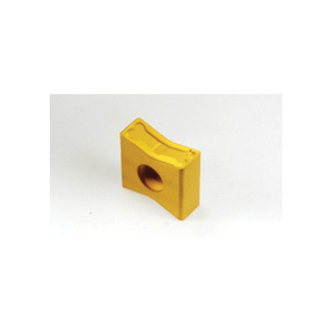

Iscar 5605420 TANGMILL TANGENTIAL LINE Milling Insert With 4 Right or Left Hand Cutting Edges, LNKX Insert, 1506 Insert, Carbide, Manufacturers Grade: IC4100, Rectangle Shape, Material Grade: H, K
Invoice description:
Lnkx 1506pntn Ic4100
Factory Order
Iscar Milling Insert, Series: TANGMILL TANGENTIAL LINE, LNKX Insert, 1506 Insert, Rectangle Shape, 13.88 mm Thickness, 6 mm Width, 15 mm Length, TN Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC4100, ISO Code: LNKX 1506PNTN IC4100, Ambidextrous Hand of Insert, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, Cast Iron, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerTN
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertAmbidextrous
Insert Size1506
Insert StyleLNKX
ISO CodeLNKX 1506PNTN IC4100
Length15 mm
Manufacturers GradeIC4100
MaterialCarbide
Material ApplicationCast Iron, Hard Steel and Hardened Cast Iron
Material GradeH, K
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness13.88 mm
Width6 mm
Additional Information
Country of OriginIL
