Iscar ISCAR 5605389

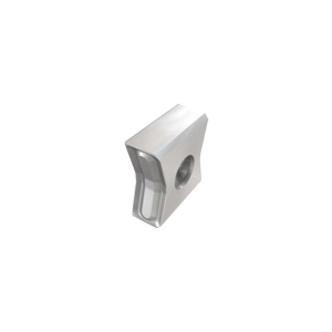

Iscar 5605389 TANGMILL TANGENTIAL LINE Single Sided Milling Insert, LNAT Insert, 1506 Insert, Carbide, Manufacturers Grade: IC4100, Rectangle Shape, Material Grade: H, K

UNSPSC: 23242107
Manufacturer PN: 5605389
$37.64 EA
Factory Order
Estimated to ship in 14 days
QTY:

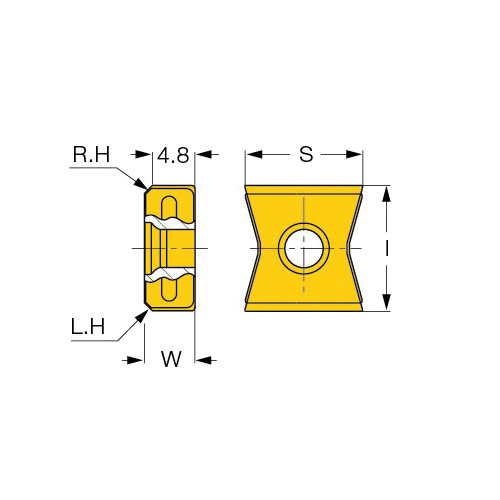

Iscar Milling Insert, Single Sided, Series: TANGMILL TANGENTIAL LINE, LNAT Insert, 1506 Insert, Rectangle Shape, 13.85 mm Thickness, 5.97 mm Width, 15.18 mm Length, W Chipbreaker, Manufacturers Grade: IC4100, ISO Code: LNAT 1506PN-W IC4100, Neutral Hand of Insert, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, Cast Iron, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationFacing Applications
ChipbreakerW
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertNeutral
Insert Size1506
Insert StyleLNAT
ISO CodeLNAT 1506PN-W IC4100
Length15.18 mm
Manufacturers GradeIC4100
MaterialCarbide
Material ApplicationCast Iron, Hard Steel and Hardened Cast Iron
Material GradeH, K
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness13.85 mm
TypeSingle Sided
Width5.97 mm
