Iscar ISCAR 5605383

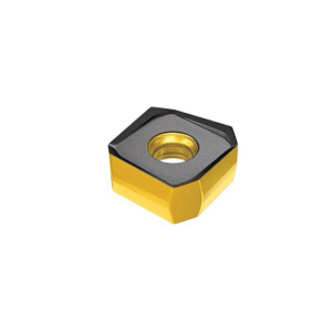

Iscar 5605383 HELIDO 845 LINE Double Sided Milling Insert With 8 Helical Right Hand Cutting Edges, SXMU Insert, 1606 Insert, Carbide, Manufacturers Grade: IC4100, Squared Shape, Material Grade: H, K

UNSPSC: 23242107
Manufacturer PN: 5605383
$36.98 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Double Sided, Series: HELIDO 845 LINE, SXMU Insert, 1606 Insert, Squared, 16.35 mm Inscribed Circle, 7.45 mm Thickness, 16.35 mm Width, 16.35 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC4100, ISO Code: S845 SXMU 1606ADTR-MM IC4100, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, Cast Iron, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertRight
Inscribed Circle16.35 mm
Insert Size1606
Insert StyleSXMU
ISO CodeS845 SXMU 1606ADTR-MM IC4100
Length16.35 mm
Manufacturers GradeIC4100
MaterialCarbide
Material ApplicationCast Iron, Hard Steel and Hardened Cast Iron
Material GradeH, K
SeriesHELIDO 845 LINE
ShapeSquared
Thickness7.45 mm
TypeDouble Sided
Width16.35 mm
