Iscar ISCAR 5605348

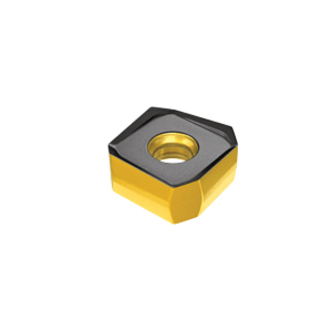

Iscar 5605348 HELIDO 845 LINE Milling Insert With 8 Helical Right Hand Cutting Edges, SXCU Insert, 160608 Insert, Carbide, Manufacturers Grade: IC830, Squared Shape, Material Grade: M, P, S
Invoice description:
S845 Sxcu 160608ad-rmm83
Factory Order
Iscar Milling Insert, Series: HELIDO 845 LINE, SXCU Insert, 160608 Insert, Squared, 16.2 mm Inscribed Circle, 7.63 mm Thickness, 16.2 mm Width, 16.2 mm Length, RMM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: S845 SXCU 160608AD-RMM IC830, Right Hand, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerRMM
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Inscribed Circle16.2 mm
Insert Size160608
Insert StyleSXCU
ISO CodeS845 SXCU 160608AD-RMM IC830
Length16.2 mm
Manufacturers GradeIC830
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIDO 845 LINE
ShapeSquared
Thickness7.63 mm
Width16.2 mm
Additional Information
Country of OriginIL
