Iscar ISCAR 5605230

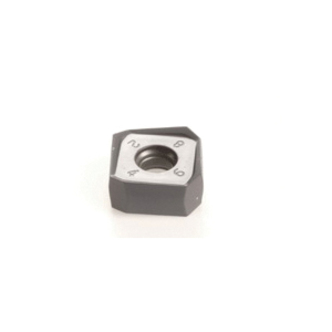

Iscar 5605230 HELIDO 845 LINE Double Sided Milling Insert With 8 Helical Right Hand Cutting Edges, SXMU Insert, 1606 Insert, Carbide, Manufacturers Grade: IC910, Squared Shape, Material Grade: K, P
Invoice description:
S845 Sxmu 1606adtr-mm 91
Factory Order
Iscar Milling Insert, Double Sided, Series: HELIDO 845 LINE, SXMU Insert, 1606 Insert, Squared Shape, 16.35 mm Inscribed Circle, 7.45 mm Thickness, 16.35 mm Width, 16.35 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC910, ISO Code: S845 SXMU 1606ADTR-MM IC910, Right Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application
Specifications
ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.8 mm
FinishPVD-AlTiN Coated
Hand of InsertRight
Inscribed Circle16.35 mm
Insert Size1606
Insert StyleSXMU
ISO CodeS845 SXMU 1606ADTR-MM IC910
Length16.35 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELIDO 845 LINE
ShapeSquared
Thickness7.45 mm
TypeDouble Sided
Width16.35 mm
Additional Information
Country of OriginIL
