Iscar ISCAR 5605221

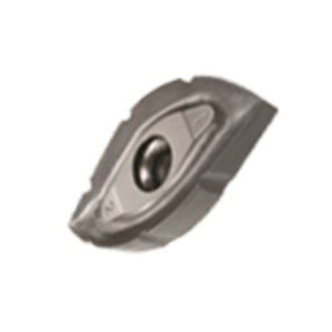

Iscar 5605221 DROPMILL Milling Insert, BCR Insert, 2 Insert, Carbide, Manufacturers Grade: IC908, 82 deg Parallelogram Shape, Material Grade: H, K, M, P, S
Invoice description:
Bcr D2.0-cs Ic908
Factory Order
Iscar Milling Insert, Series: DROPMILL, BCR Insert, 2 Insert, 82 deg Parallelogram, 0.35 in Thickness, 0.986 in Width, 1.76 in Length, CS Chipbreaker, 1 in Corner Radius, Manufacturers Grade: IC908, ISO Code: BCR D2.0-CS IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Features
- The DROPMILL insert has a straight cutting edge tangent to a round corner
- It enables machining of a shoulder with a round corner
- A protrusion on the bottom mounts in a mating slot in the pocket to maintain high edge location precision
Specifications
ApplicationDrill Mill, Helical Interpolation, Profiling, Rampdown, Plunging and Recessing
ChipbreakerCS
Corner Radius1 in
FinishPVD-TiAlN Coated
Insert Size2
Insert StyleBCR
ISO CodeBCR D2.0-CS IC908
Length1.76 in
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesDROPMILL
Shape82 deg Parallelogram
Thickness0.35 in
Width0.986 in
Additional Information
Country of OriginIL
