Iscar ISCAR 5604840

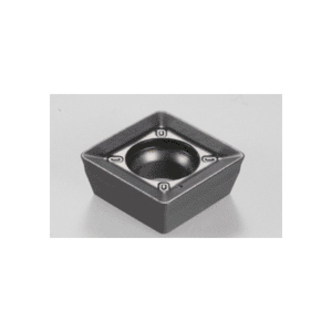

Iscar 5604840 QUAD2000 Milling Insert With 4 Right or Left Hand Cutting Edges, QPMT Insert, 100408 Insert, Carbide, Manufacturers Grade: IC928, Squared Shape, Material Grade: M, P, S
Invoice description:
Qpmt 100408pdtn-m Ic928
Factory Order

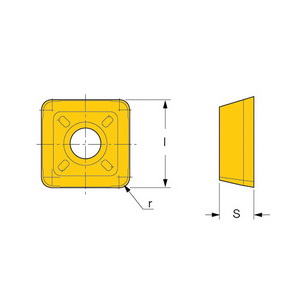

Iscar Milling Insert, Series: QUAD2000, QPMT Insert, 100408 Insert, Squared Shape, 10.35 mm Inscribed Circle, 4.12 mm Thickness, 10.35 mm Width, 10.35 mm Length, PDTN-M Chipbreaker, 0.7 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: QPMT 100408PDTN-M IC928, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Facing, Rampdown, Shouldering, Side Slotting and Slotting
ChipbreakerPDTN-M
Corner Radius0.7 mm
FinishPVD-TiAlN Coated
Inscribed Circle10.35 mm
Insert Size100408
Insert StyleQPMT
ISO CodeQPMT 100408PDTN-M IC928
Length10.35 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesQUAD2000
ShapeSquared
Thickness4.12 mm
Width10.35 mm
