Iscar ISCAR 5604826

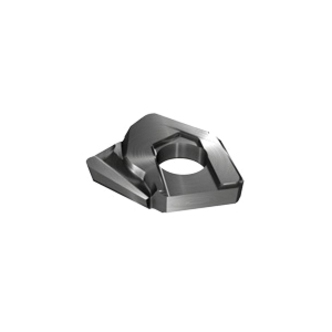

Iscar 5604826 BALLPLUS Milling Insert, HCC Insert, 250 Insert, Carbide, Manufacturers Grade: IC908, Hexagon Shape, Material Grade: H, K, M, P, S
Invoice description:
Hcc D250-r1.0-qf Ic908
Factory Order
Iscar Milling Insert, Series: 1195, HCC Insert, 250 Insert, Hexagon, 5.4 mm Thickness, 25 mm Width, QF Chipbreaker, 1 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: HCC D250-R1.0-QF IC908, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Features
- Accuracy is within 0.01 mm
- Used for roughing and semi-finishing applications
- Part of the BALLPLUS multifunction milling system
Specifications
ApplicationCounterboring, Drill Mill, Shouldering and Slotting
ChipbreakerQF
Corner Radius1 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size250
Insert StyleHCC
ISO CodeHCC D250-R1.0-QF IC908
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesBALLPLUS
ShapeHexagon
Thickness5.4 mm
Width25 mm
Additional Information
Country of OriginIL
