Iscar ISCAR 5604812

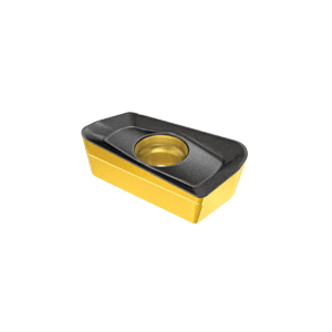

Iscar 5604812 HELIPLUS Milling Insert, ANKT Insert, 070208 Insert, Carbide, Manufacturers Grade: IC908, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5604812
$20.50 EA
Factory Order
Estimated to ship in 14 days
QTY:

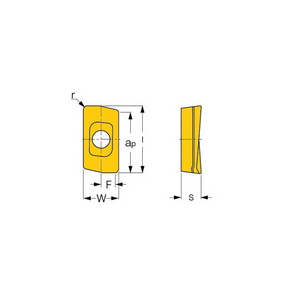

Iscar Milling Insert, ANKT Insert, 070208 Insert, 85 deg Parallelogram, 0.102 in Thickness, 0.177 in Width, 0.343 in Length, 0.031 in Corner Radius, 0 deg Lead Angle, Manufacturers Grade: IC908, ISO Code: HP ANKT 070208PNTR IC908, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationCounterboring, Facing, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
Corner Radius0.031 in
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size070208
Insert StyleANKT
ISO CodeHP ANKT 070208PNTR IC908
Lead Angle0 deg
Length0.343 in
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELIPLUS
Shape85 deg Parallelogram
Thickness0.102 in
Width0.177 in
