Iscar ISCAR 5604768

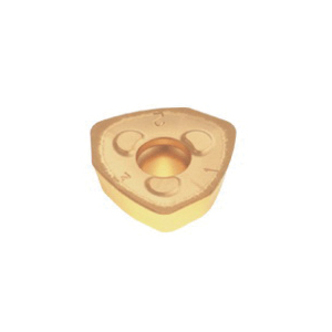

Iscar 5604768 FEEDMILL Milling Insert, ANSI Code: FF WOCT 09T320T, FF Insert, 09T320 Insert, Manufacturers Grade: IC328
Invoice description:
Ff Woct 09t320t Ic328
Factory Order
Iscar Milling Insert, Series: FEEDMILL, FF Insert, 09T320 Insert, 14.5 mm Inscribed Circle, 6.5 mm Thickness, 2 mm Corner Radius, Positive Rake, Manufacturers Grade: IC328, ANSI Code: FF WOCT 09T320T, ISO Code: FF WOMT/WOCT
Features
- Positive rake inserts for fast feed machining at small depths of cut
- Designed with a cylinder on bottom that is seated in a mating hole in the pocket (FEEDMILL)
Specifications
ApplicationMilling and Fast Feed Milling
ANSI CodeFF WOCT 09T320T
Corner Radius2 mm
Inscribed Circle14.5 mm
Insert Size09T320
Insert StyleFF
ISO CodeFF WOMT/WOCT
Manufacturers GradeIC328
RakePositive
SeriesFEEDMILL
Thickness6.5 mm
Additional Information
Standards/ApprovalISO 13399
