Iscar ISCAR 5604710

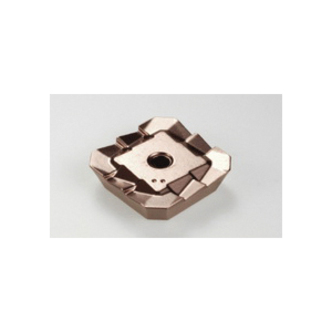

Iscar 5604710 ISCARMILL Milling Insert With Chip Splitting Serrated Cutting Edge, SEKR Insert, 1203 Insert, Carbide, Manufacturers Grade: IC928, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5604710
$14.10 EA
Factory Order
Estimated to ship in 14 days
QTY:

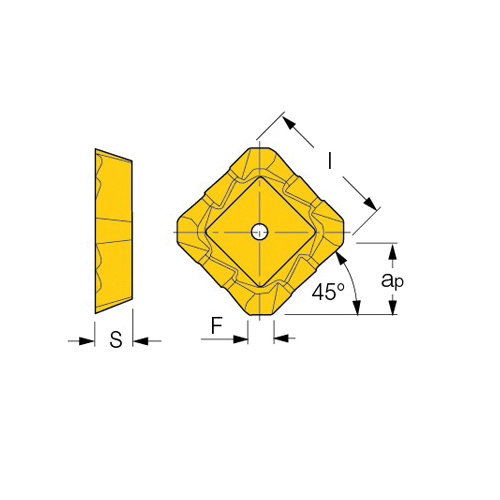

Iscar Milling Insert, Series: ISCARMILL, SEKR Insert, 1203 Insert, Squared Shape, 12.7 mm Inscribed Circle, 3.18 mm Thickness, 12.7 mm Width, 12.7 mm Length, HS Chipbreaker, Manufacturers Grade: IC928, ISO Code: SEKR 1203AFTR-HS IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerHS
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle12.7 mm
Insert Size1203
Insert StyleSEKR
ISO CodeSEKR 1203AFTR-HS IC928
Length12.7 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesISCARMILL
ShapeSquared
Thickness3.18 mm
Width12.7 mm
