Iscar ISCAR 5604702

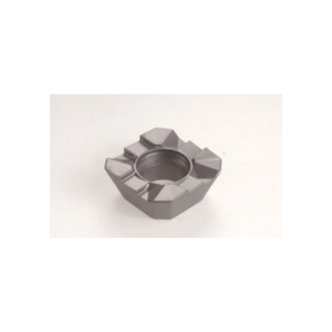

Iscar 5604702 ISOSHRED Single Sided Milling Insert With Chip Splitting Serrated Cutting Edge, ANSI Code: SEMT 43AF-R-HS IC928, SEMT Insert, 1204 Insert, Carbide, Manufacturers Grade: IC928, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5604702
$19.64 EA
Factory Order
Estimated to ship in 14 days
QTY:

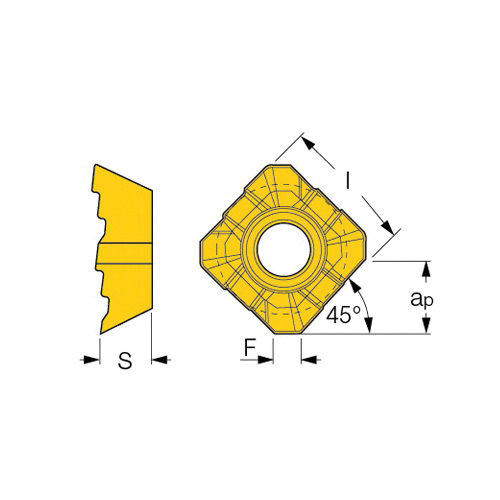

Iscar Milling Insert, Single Sided, Series: ISOSHRED, SEMT Insert, 1204 Insert, Squared, 12.65 mm Inscribed Circle, 4.76 mm Thickness, 12.65 mm Width, 12.65 mm Length, HS Chipbreaker, 45 deg Lead Angle, Manufacturers Grade: IC928, ANSI Code: SEMT 43AF-R-HS IC928, ISO Code: SEMT 1204AF-R-HS IC928, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ANSI CodeSEMT 43AF-R-HS IC928
ChipbreakerHS
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle12.65 mm
Insert Size1204
Insert StyleSEMT
ISO CodeSEMT 1204AF-R-HS IC928
Lead Angle45 deg
Length12.65 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesISOSHRED
ShapeSquared
Thickness4.76 mm
TypeSingle Sided
Width12.65 mm
