Iscar ISCAR 5604684

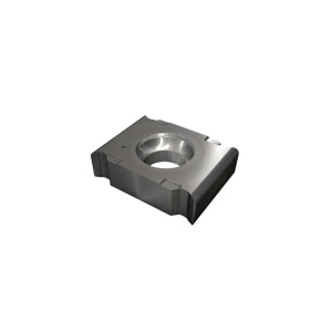

Iscar 5604684 TANGSLOT Tangentially Clamped Milling Insert, ANSI Code: LNET 126504-TN-MM, LNET Insert, 126504 Insert, Manufacturers Grade: IC928
Invoice description:
Lnet 126504-tn-mm Ic928
Factory Order
Iscar Milling Insert, Tangentially Clamped, Series: TANGSLOT, LNET Insert, 126504 Insert, 9.52 mm Inscribed Circle, 6.5 mm Thickness, 12.7 mm Length, Manufacturers Grade: IC928, ANSI Code: LNET 126504-TN-MM, ISO Code: LNET 12-TN-MM
Features
- TANGSLOT Tangentially clamped inserts with 4 cutting edges for milling deep and long steel slots
- The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface
Specifications
ApplicationMilling and Side Slotting
ANSI CodeLNET 126504-TN-MM
Inscribed Circle9.52 mm
Insert Size126504
Insert StyleLNET
ISO CodeLNET 12-TN-MM
Length12.7 mm
Manufacturers GradeIC928
SeriesTANGSLOT
Thickness6.5 mm
TypeTangentially Clamped
Additional Information
Standards/ApprovalISO 13399
