Iscar ISCAR 5604646

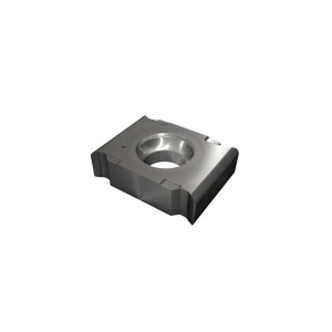

Iscar 5604646 TANGSLOT Tangentially Clamped Milling Insert, ANSI Code: LNET 125508-TN-MM, LNET Insert, 125508 Insert, Manufacturers Grade: IC928

Invoice description: Lnet 125508-tn-mm Ic928

UNSPSC: 23291601
Manufacturer PN: 5604646
$31.01 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Tangentially Clamped, Series: TANGSLOT, LNET Insert, 125508 Insert, 3/8 in Inscribed Circle, 0.217 in Thickness, 1/2 in Length, Manufacturers Grade: IC928, ANSI Code: LNET 125508-TN-MM, ISO Code: LNET 12-TN-MM

  • Features

  • TANGSLOT Tangentially clamped inserts with 4 cutting edges for milling deep and long steel slots
  • The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface

Specifications

ApplicationMilling and Side Slotting
ANSI CodeLNET 125508-TN-MM
Inscribed Circle3/8 in
Insert Size125508
Insert StyleLNET
ISO CodeLNET 12-TN-MM
Length1/2 in
Manufacturers GradeIC928
SeriesTANGSLOT
Thickness0.217 in
TypeTangentially Clamped

Additional Information

Standards/ApprovalISO 13399
