Iscar ISCAR 5604546

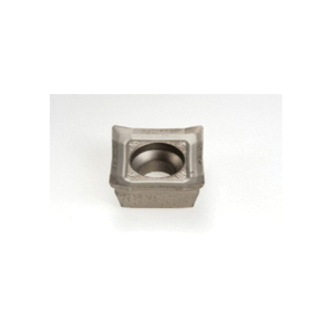

Iscar 5604546 QUAD2000 Single Sided Milling Insert, QPMR Insert, 100404 Insert, Carbide, Manufacturers Grade: IC28, Squared Shape, Material Grade: N
Invoice description:
Qpmr 100404pdn-hq-m Ic28
Factory Order

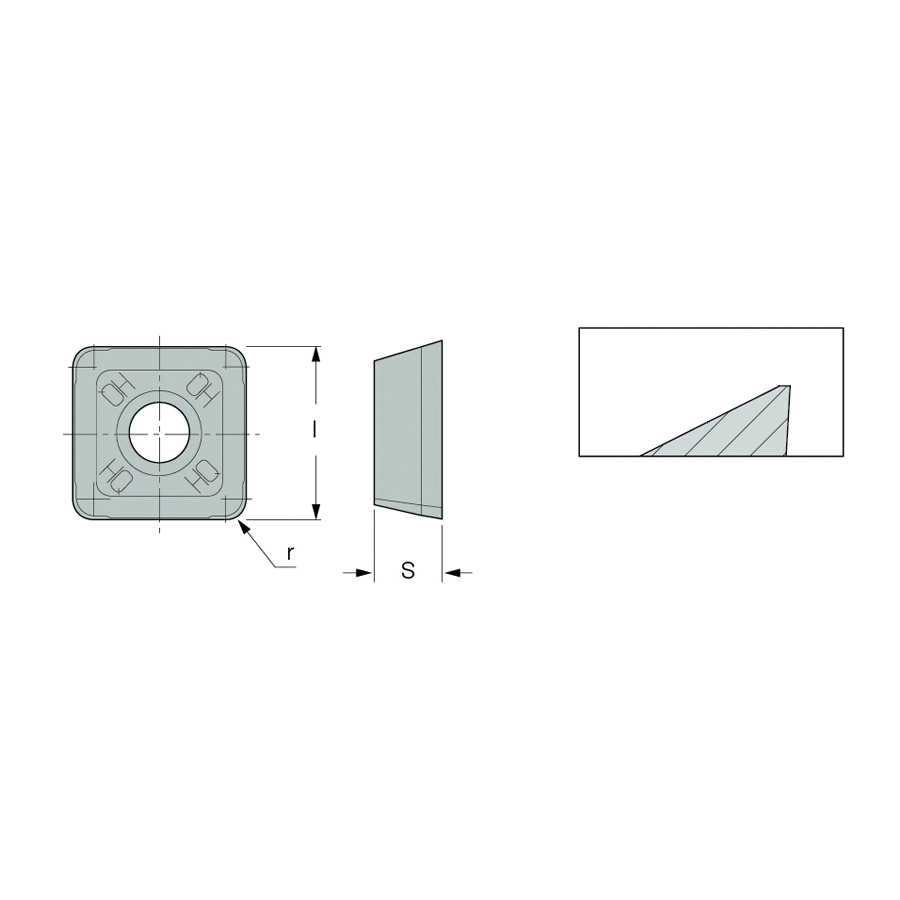

Iscar Milling Insert, Single Sided, Series: QUAD2000, QPMR Insert, 100404 Insert, Squared, 10.35 mm Inscribed Circle, 4.48 mm Thickness, 10.35 mm Width, 10.35 mm Length, HQ-M Chipbreaker, 0.4 mm Corner Radius, Positive Rake, Manufacturers Grade: IC28, ISO Code: QPMR 100404PDN-HQ-M IC28, Neutral Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application
Specifications
ApplicationFacing, Rampdown, Shouldering, Slanted Shoulder and Chamfer and Slotting
ChipbreakerHQ-M
Corner Radius0.4 mm
FinishUncoated
Hand of InsertNeutral
Inscribed Circle10.35 mm
Insert Size100404
Insert StyleQPMR
ISO CodeQPMR 100404PDN-HQ-M IC28
Length10.35 mm
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
RakePositive
SeriesQUAD2000
ShapeSquared
Thickness4.48 mm
TypeSingle Sided
Width10.35 mm
Additional Information
Country of OriginIL
