Iscar ISCAR 5604476

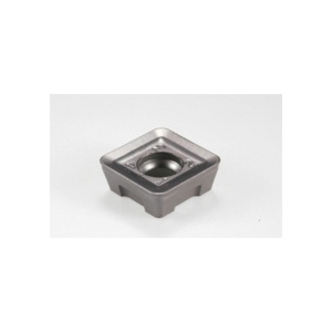

Iscar 5604476 HELIQUAD Single Sided Milling Insert, QDMT Insert, 120516 Insert, Carbide, Manufacturers Grade: IC928, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5604476
$28.14 EA
Factory Order
Estimated to ship in 14 days
QTY:

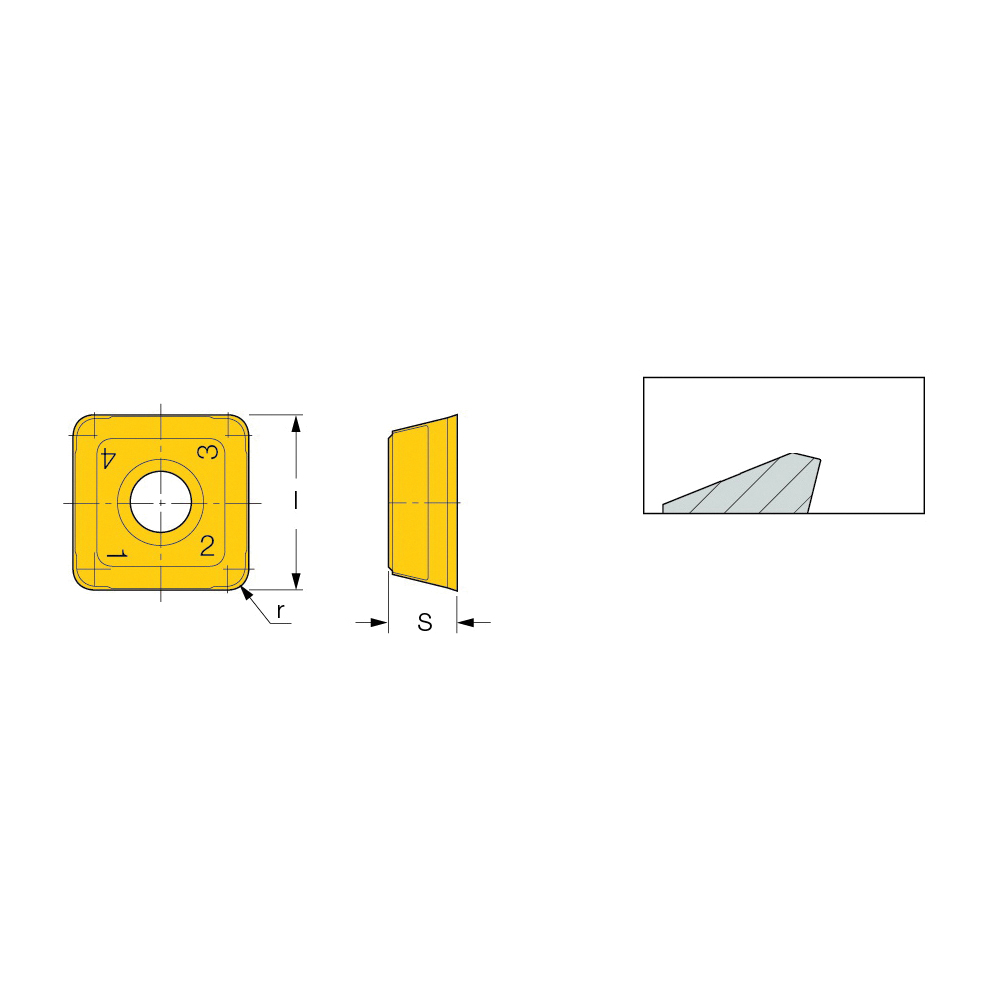

Iscar Milling Insert, Single Sided, Series: HELIQUAD, QDMT Insert, 120516 Insert, Squared Shape, 12.7 mm Inscribed Circle, 5 mm Thickness, 12.7 mm Width, 12.7 mm Length, M Chipbreaker, 1.6 mm Corner Radius, Positive Rake, Manufacturers Grade: IC928, ISO Code: QDMT 120516PDTN-M IC928, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerM
Corner Radius1.6 mm
FinishPVD-TiAlN Coated
Inscribed Circle12.7 mm
Insert Size120516
Insert StyleQDMT
ISO CodeQDMT 120516PDTN-M IC928
Length12.7 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesHELIQUAD
ShapeSquared
Thickness5 mm
TypeSingle Sided
Width12.7 mm
