Iscar ISCAR 5604060

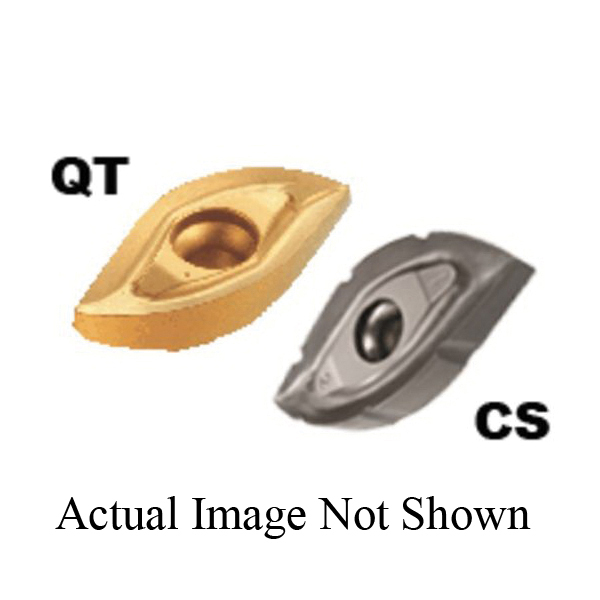

Iscar 5604060 DROPMILL Milling Insert, BCR Insert, 1 Insert, Carbide, Manufacturers Grade: IC928, 82 deg Parallelogram Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5604060
$70.50 EA
Factory Order
Estimated to ship in 14 days
QTY:

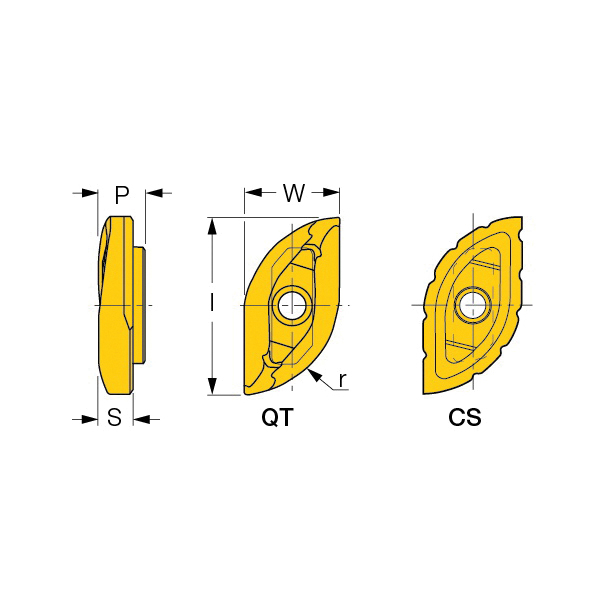

Iscar Milling Insert, Series: DROPMILL, BCR Insert, 1 Insert, 82 deg Parallelogram Shape, 0.17 in Thickness, 0.47 in Width, 0.87 in Length, QF Chipbreaker, 1/2 in Corner Radius, Manufacturers Grade: IC928, ISO Code: BCR D1.00-QT IC928, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

  • Features

  • Designed with a cylinder on bottom that is seated in a mating hole in the pocket

Specifications

ApplicationDrill Mill, Helical Interpolation, Profiling, Rampdown, Plunging and Recessing
ChipbreakerQF
Corner Radius1/2 in
FinishPVD-TiAlN Coated
Insert Size1
Insert StyleBCR
ISO CodeBCR D1.00-QT IC928
Length0.87 in
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesDROPMILL
Shape82 deg Parallelogram
Thickness0.17 in
Width0.47 in
