Iscar ISCAR 5603967

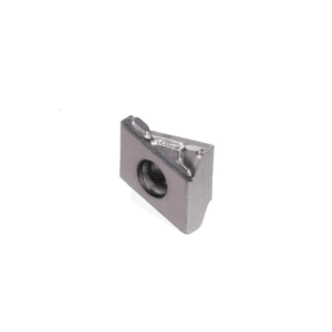

Iscar 5603967 TANGMILL TANGENTIAL LINE Single Sided Milling Insert, LNMT Insert, 1506 Insert, Carbide, Manufacturers Grade: IC910, Rectangle Shape, Material Grade: K, P
Invoice description:
Lnmt 1506pn-r Ht Ic910
Factory Order

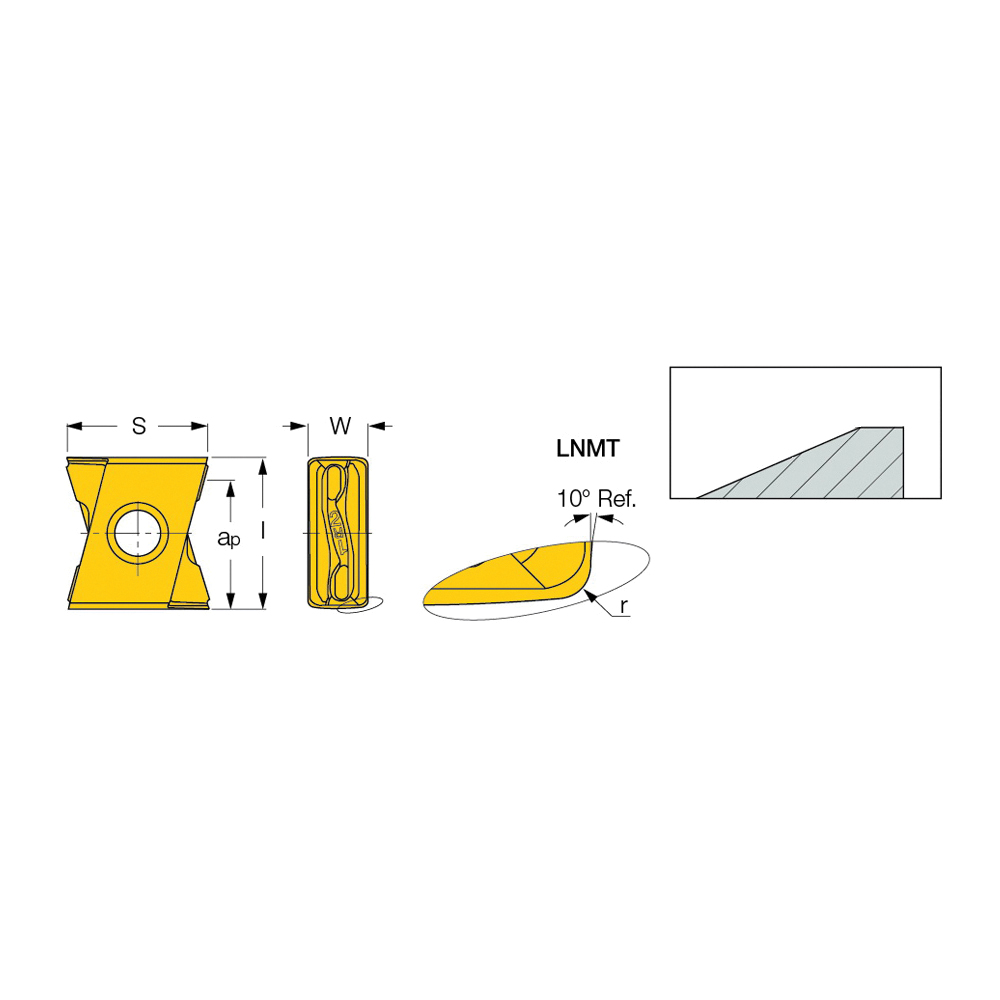

Iscar Milling Insert, Single Sided, Series: TANGMILL TANGENTIAL LINE, LNMT Insert, 1506 Insert, Rectangle Shape, 13.93 mm Thickness, 6 mm Width, 15 mm Length, HT Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC910, ISO Code: LNMT 1506PN-R HT IC910, Right Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application
Specifications
ApplicationFacing and Slotting
ChipbreakerHT
Corner Radius0.8 mm
FinishPVD-AlTiN Coated
Hand of InsertRight
Insert Size1506
Insert StyleLNMT
ISO CodeLNMT 1506PN-R HT IC910
Length15 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness13.93 mm
TypeSingle Sided
Width6 mm
Additional Information
Country of OriginIL
