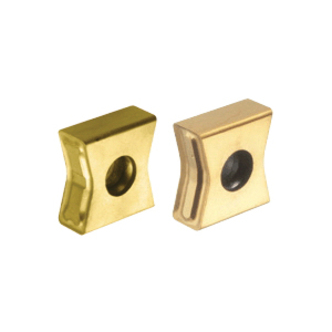

Iscar ISCAR 5603961

Iscar 5603961 TANGMILL TANGENTIAL LINE Milling Insert With 4 Right or Left Hand Cutting Edges, LNMT Insert, 1506 Insert, Carbide, Manufacturers Grade: IC910, Rectangle Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5603961
$29.92 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: TANGMILL TANGENTIAL LINE, LNMT Insert, 1506 Insert, Rectangle Shape, 13.95 mm Thickness, 6 mm Width, 15 mm Length, PNTN Chipbreaker, 0.8 mm Corner Radius, Negative Rake, 0 deg Lead Angle, Manufacturers Grade: IC910, ISO Code: LNMT 1506PNTN IC910, Neutral Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerPNTN
Corner Radius0.8 mm
FinishPVD-AlTiN Coated
Hand of InsertNeutral
Insert Size1506
Insert StyleLNMT
ISO CodeLNMT 1506PNTN IC910
Lead Angle0 deg
Length15 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
RakeNegative
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness13.95 mm
Width6 mm
