Iscar ISCAR 5603955

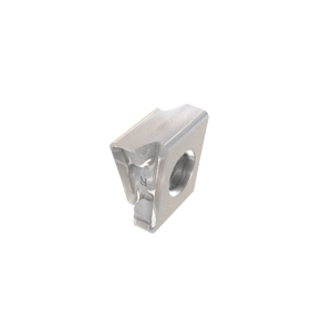

Iscar 5603955 TANGMILL TANGENTIAL LINE Milling Insert With 4 Straight Right Hand Cutting Edges, LNHT Insert, 1106 Insert, Carbide, Manufacturers Grade: IC910, Rectangle Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5603955
$32.92 EA
Factory Order
Estimated to ship in 14 days
QTY:

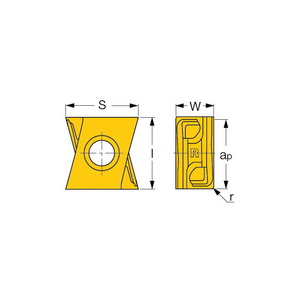

Iscar Milling Insert, Series: TANGMILL TANGENTIAL LINE, LNHT Insert, 1106 Insert, Rectangle Shape, 11 mm Thickness, 5.97 mm Width, 11.16 mm Length, HT Chipbreaker, 0.8 mm Corner Radius, 0 deg Lead Angle, Manufacturers Grade: IC910, ISO Code: LNHT 1106PN-R HT IC910, Right Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationFacing and Shouldering
ChipbreakerHT
Corner Radius0.8 mm
FinishPVD-AlTiN Coated
Hand of InsertRight
Insert Size1106
Insert StyleLNHT
ISO CodeLNHT 1106PN-R HT IC910
Lead Angle0 deg
Length11.16 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness11 mm
Width5.97 mm
