Iscar ISCAR 5603831

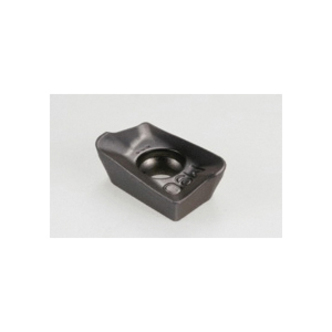

Iscar 5603831 HELI2000 Single Sided Milling Insert, APKT Insert, 100316 Insert, Carbide, Manufacturers Grade: IC908, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S

Invoice description: Hm90 Apkt 100316pdr Ic90 8

UNSPSC: 23242107

Manufacturer PN: 5603831

^$23.18 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

Iscar Milling Insert, Single Sided, Series: HELI2000, APKT Insert, 100316 Insert, 85 deg Parallelogram Shape, 3.53 mm Thickness, 6.76 mm Width, 11.45 mm Length, PDR Chipbreaker, 1.6 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: HM90 APKT 100316PDR IC908, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationCountersinking, Facing, Profiling, Rampdown, Shouldering, Slanted Shoulder and Chamfer and Slotting

ChipbreakerPDR

Corner Radius1.6 mm

FinishPVD-TiAlN Coated

Hand of InsertRight

Insert Size100316

Insert StyleAPKT

ISO CodeHM90 APKT 100316PDR IC908

Length11.45 mm

Manufacturers GradeIC908

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesHELI2000

Shape85 deg Parallelogram

Thickness3.53 mm

TypeSingle Sided

Width6.76 mm
