Iscar ISCAR 5603762

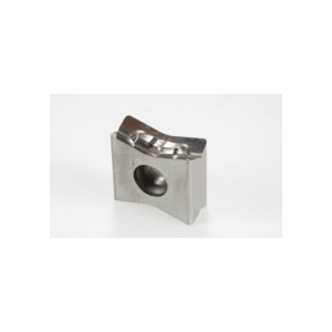

Iscar 5603762 TANGMILL TANGENTIAL LINE Single Sided Milling Insert, LNAR Insert, 1506 Insert, Carbide, Manufacturers Grade: IC07, Rectangle Shape, Material Grade: M, N, S

UNSPSC: 23242107
Manufacturer PN: 5603762
$36.50 EA
Factory Order
Estimated to ship in 14 days
QTY:

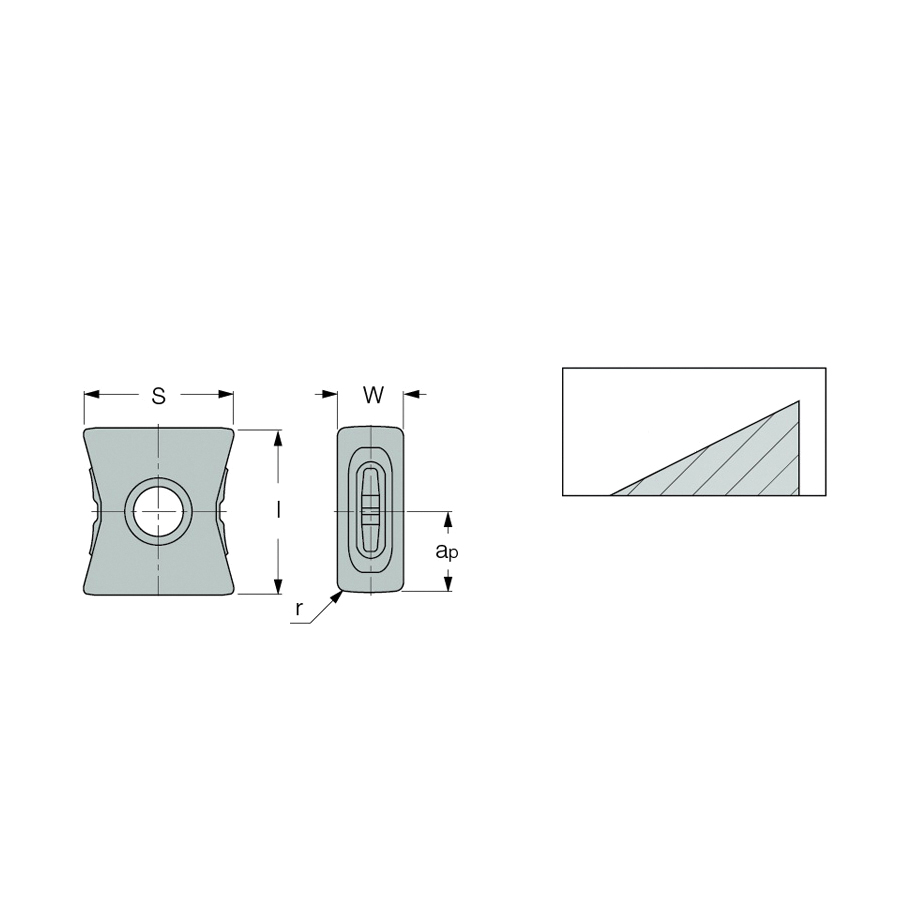

Iscar Milling Insert, Single Sided, Series: TANGMILL TANGENTIAL LINE, LNAR Insert, 1506 Insert, Rectangle Shape, 13.56 mm Thickness, 6 mm Width, 15 mm Length, P Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC07, ISO Code: LNAR 1506 PN-N-P IC07, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: M, N, S, Stainless Steel Austenitic and Duplex, Non-Ferrous Metals and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerP
Corner Radius0.8 mm
FinishUncoated
Hand of InsertNeutral
Insert Size1506
Insert StyleLNAR
ISO CodeLNAR 1506 PN-N-P IC07
Length15 mm
Manufacturers GradeIC07
MaterialCarbide
Material ApplicationStainless Steel Austenitic and Duplex, Non-Ferrous Metals and High Temperature Alloys
Material GradeM, N, S
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness13.56 mm
TypeSingle Sided
Width6 mm
