Iscar ISCAR 5603758

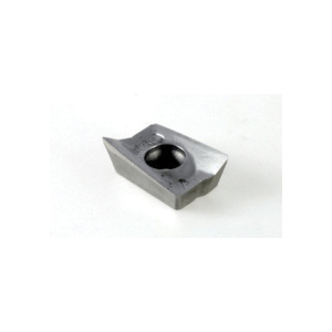

Iscar 5603758 HELI2000 Single Sided Milling Insert, APCR Insert, 100304 Insert, Carbide, Manufacturers Grade: IC28, 85 deg Parallelogram Shape, Material Grade: N

UNSPSC: 23242107
Manufacturer PN: 5603758
$29.16 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided, Series: 630M, APCR Insert, 100304 Insert, 85 deg Parallelogram, 3.85 mm Thickness, 6.52 mm Width, 11.25 mm Length, DP Chipbreaker, 0.4 mm Corner Radius, Positive Rake, Manufacturers Grade: IC28, ISO Code: HM90 APCR 100304PDFRDP IC28, Right Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application

Specifications

ApplicationFacing, Helical Interpolation, Shouldering, Slotting, Plunging and Recessing
ChipbreakerDP
Corner Radius0.4 mm
FinishUncoated
Hand of InsertRight
Insert Size100304
Insert StyleAPCR
ISO CodeHM90 APCR 100304PDFRDP IC28
Length11.25 mm
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
RakePositive
SeriesHELI2000
Shape85 deg Parallelogram
Thickness3.85 mm
TypeSingle Sided
Width6.52 mm
