Iscar ISCAR 5603743

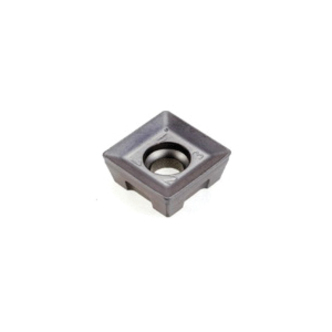

Iscar 5603743 HELIQUAD Milling Insert, ANSI Code: QDMT 1205PDTN-M, QDMT Insert, 1205 Insert, Manufacturers Grade: IC928, Squared Shape

Pack Size: 10
UNSPSC: 23291601
Manufacturer PN: 5603743
$28.14 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: HELIQUAD, QDMT Insert, 1205 Insert, Squared, 12.7 mm Inscribed Circle, 5 mm Thickness, 12.7 mm Length, 0.8 mm Corner Radius, Manufacturers Grade: IC928, ANSI Code: QDMT 1205PDTN-M, ISO Code: QDMT 1205..PDTN-M

Specifications

ApplicationMilling
ANSI CodeQDMT 1205PDTN-M
Corner Radius0.8 mm
Inscribed Circle12.7 mm
Insert Size1205
Insert StyleQDMT
ISO CodeQDMT 1205..PDTN-M
Length12.7 mm
Manufacturers GradeIC928
SeriesHELIQUAD
ShapeSquared
Thickness5 mm
