Iscar ISCAR 5603734

Iscar 5603734 HELIOCTO Milling Insert, OFMW Insert, 07T3 Insert, Carbide, Manufacturers Grade: IC908, Octagon Shape, Material Grade: H, K, M, P, S

Invoice description: Ofmw 07t3-aetn Ic908

UNSPSC: 23242107

Manufacturer PN: 5603734

^$27.37 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

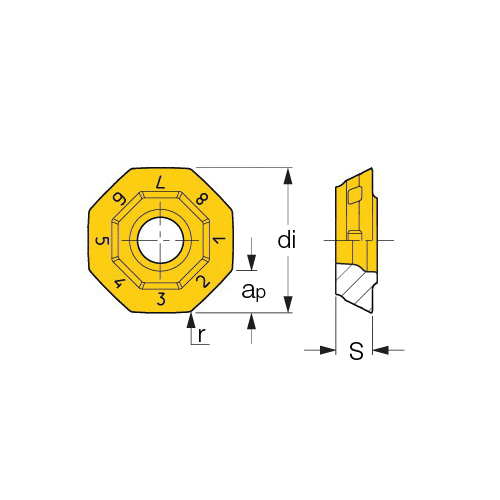

Iscar Milling Insert, Series: HELIOCTO, OFMW Insert, 07T3 Insert, Octagon Shape, 18.07 mm Inscribed Circle, AETN Chipbreaker, 1 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: OFMW 07T3-AETN IC908, Neutral Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationFacing, Helical Interpolation, Rampdown, Slanted Shoulder and Chamfer

ChipbreakerAETN

Corner Radius1 mm

FinishPVD-TiAlN Coated

Hand of InsertAmbidextrous

Inscribed Circle18.07 mm

Insert Size07T3

Insert StyleOFMW

ISO CodeOFMW 07T3-AETN IC908

Manufacturers GradeIC908

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesHELIOCTO

ShapeOctagon
