Iscar ISCAR 5603719

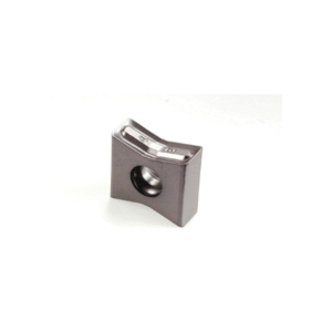

Iscar 5603719 TANGMILL TANGENTIAL LINE Single Sided Milling Insert With 4 Right or Left Hand Cutting Edges, LNMT Insert, 1506 Insert, Carbide, Manufacturers Grade: IC928, Rectangle Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5603719
$29.92 EA
Factory Order
Estimated to ship in 14 days
QTY:

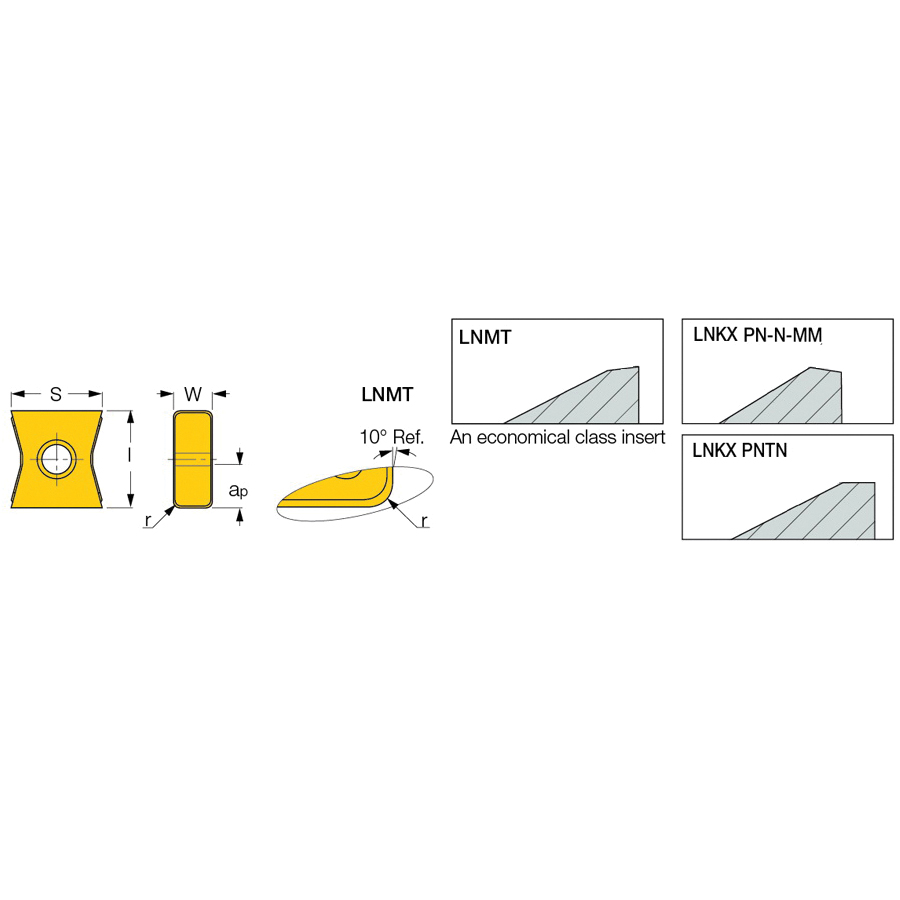

Iscar Milling Insert, Single Sided, Series: TANGMILL TANGENTIAL LINE, LNMT Insert, 1506 Insert, Rectangle Shape, 13.95 mm Thickness, 6 mm Width, 15 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, Negative Rake, Manufacturers Grade: IC928, ISO Code: LNMT 1506PN-N MM IC928, Neutral Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerMM
Corner Radius0.8 mm
FinishPVD-TiAlN Coated
Hand of InsertNeutral
Insert Size1506
Insert StyleLNMT
ISO CodeLNMT 1506PN-N MM IC928
Length15 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakeNegative
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness13.95 mm
TypeSingle Sided
Width6 mm
