Iscar ISCAR 5603718

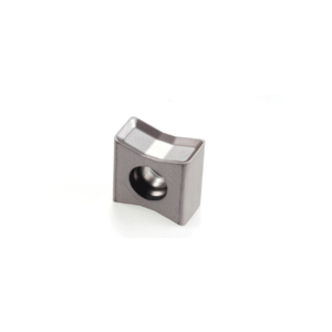

Iscar 5603718 TANGMILL TANGENTIAL LINE Milling Insert, LNKX Insert, 1106 Insert, Carbide, Manufacturers Grade: IC908, Rectangle Shape, Material Grade: H, K, M, P, S
Invoice description:
Lnkx 1106pn-n Mm Ic908
Factory Order

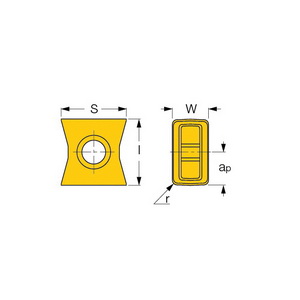

Iscar Milling Insert, Series: TANGMILL TANGENTIAL LINE, LNKX Insert, 1106 Insert, Rectangle Shape, 0.236 in Thickness, 0.433 in Width, 0.439 in Length, MM Chipbreaker, 0.031 in Corner Radius, Positive Rake, 0 deg Lead Angle, Manufacturers Grade: IC908, ISO Code: LNKX 1106PN-N MM IC908, Neutral Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationT-Slotting, Chamfering and Bottom Deburring, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerMM
Corner Radius0.031 in
FinishPVD-TiAlN Coated
Hand of InsertNeutral
Insert Size1106
Insert StyleLNKX
ISO CodeLNKX 1106PN-N MM IC908
Lead Angle0 deg
Length0.439 in
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
RakePositive
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness0.236 in
Width0.433 in
Additional Information
Country of OriginIL
