Iscar ISCAR 5603693

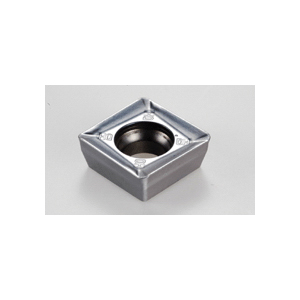

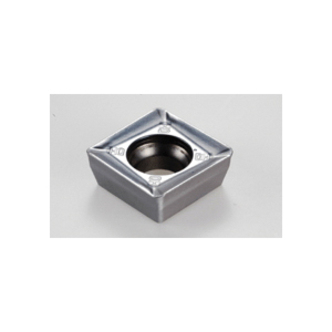

Iscar 5603693 HELIQUAD Milling Insert, SPMT Insert, 100408 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S
Invoice description:
Spmt 100408tr-hq-m Ic328
Factory Order

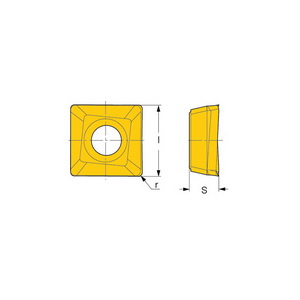

Iscar Milling Insert, Series: HELIQUAD, SPMT Insert, 100408 Insert, Squared Shape, 10.2 mm Inscribed Circle, 4.23 mm Thickness, 10.2 mm Width, 10.2 mm Length, HQ Chipbreaker, 0.8 mm Corner Radius, Positive Rake, 11 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: SPMT 100408TR-HQ-M IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationDrill Mill, Facing, Rampdown, Shouldering, Slotting, Plunging and Recessing
ChipbreakerHQ
Corner Radius0.8 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle10.2 mm
Insert Size100408
Insert StyleSPMT
ISO CodeSPMT 100408TR-HQ-M IC328
Lead Angle11 deg
Length10.2 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesHELIQUAD
ShapeSquared
Thickness4.23 mm
Width10.2 mm
Additional Information
Country of OriginIS
