Iscar ISCAR 5603689

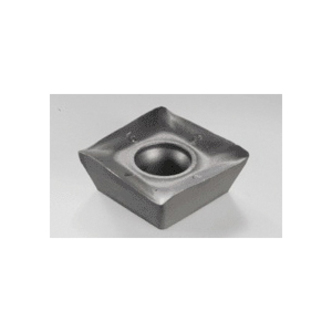

Iscar 5603689 HELIQUAD Single Sided Milling Insert With 4 Helical Cutting Edges, SDMT Insert, 1606 Insert, Carbide, Manufacturers Grade: IC928, Squared Shape, Material Grade: M, P, S
Invoice description:
Sdmt 1606pdr-hq-m Ic928
Factory Order

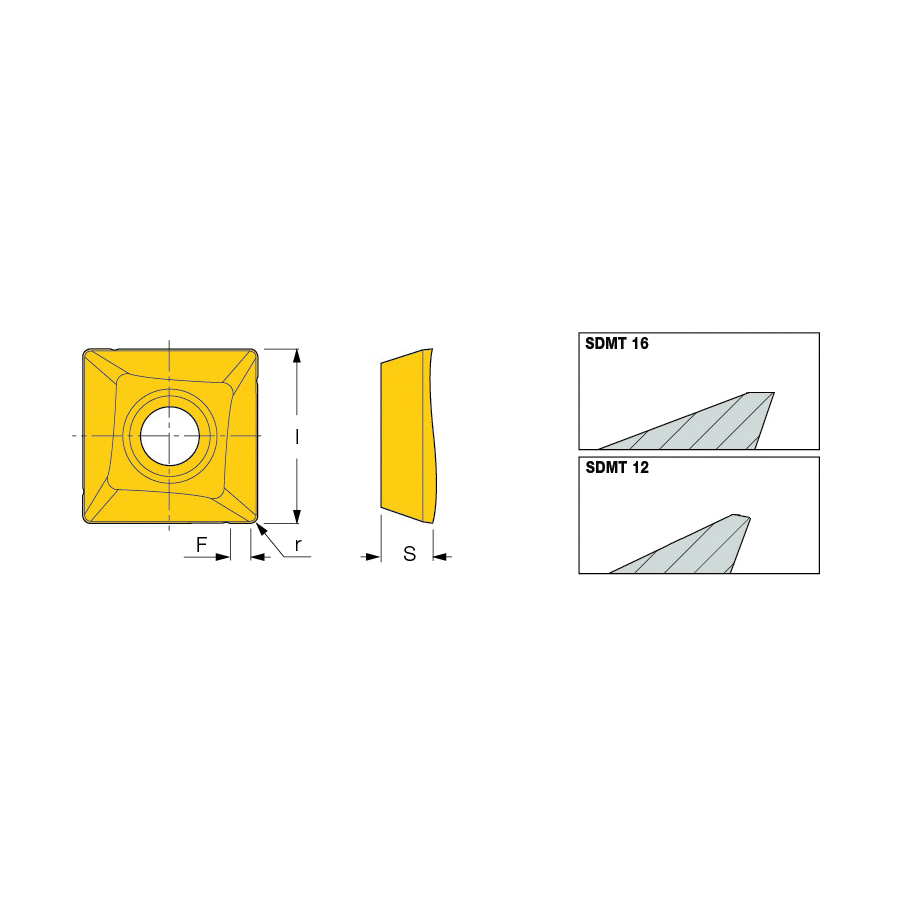

Iscar Milling Insert, Single Sided, Series: HELIQUAD, SDMT Insert, 1606 Insert, Squared Shape, 16.4 mm Inscribed Circle, 6.5 mm Thickness, 16.4 mm Width, 16.4 mm Length, HQ Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: SDMT 1606PDR-HQ-M IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationCountersinking, Facing, Shouldering, Slotting, Plunging and Recessing
ChipbreakerHQ
Corner Radius0.8 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle16.4 mm
Insert Size1606
Insert StyleSDMT
ISO CodeSDMT 1606PDR-HQ-M IC928
Length16.4 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIQUAD
ShapeSquared
Thickness6.5 mm
TypeSingle Sided
Width16.4 mm
Additional Information
Country of OriginIL
