Iscar ISCAR 5603672

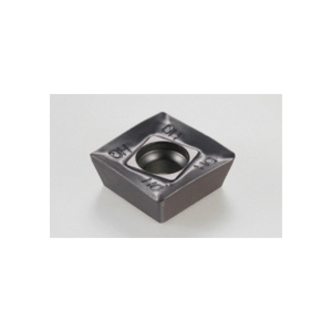

Iscar 5603672 HELIQUAD Single Sided Milling Insert With 4 Helical Cutting Edges, SDMT Insert, 1205 Insert, Carbide, Manufacturers Grade: IC910, Squared Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5603672
$25.32 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided, Series: HELIQUAD, SDMT Insert, 1205 Insert, Squared Shape, 12.7 mm Inscribed Circle, 5 mm Thickness, 12.7 mm Width, 12.7 mm Length, HQ Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC910, ISO Code: SDMT 1205PDR-HQ-M IC910, Right Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationCountersinking, Facing, Shouldering, Slotting, Plunging and Recessing
ChipbreakerHQ
Corner Radius0.8 mm
FinishPVD-AlTiN Coated
Hand of InsertRight
Inscribed Circle12.7 mm
Insert Size1205
Insert StyleSDMT
ISO CodeSDMT 1205PDR-HQ-M IC910
Length12.7 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELIQUAD
ShapeSquared
Thickness5 mm
TypeSingle Sided
Width12.7 mm
