Iscar ISCAR 5603669

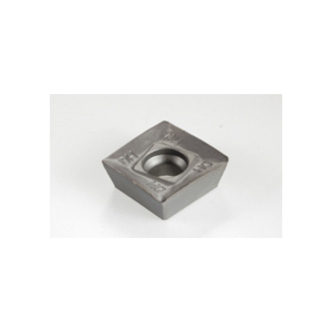

Iscar 5603669 HELIQUAD Milling Insert With 4 Helical Cutting Edges, SDMT Insert, 1205 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5603669
$24.20 EA
Factory Order
Estimated to ship in 14 days
QTY:

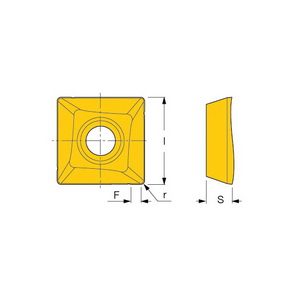

Iscar Milling Insert, Series: HELIQUAD, SDMT Insert, 1205 Insert, Squared Shape, 1/2 in Inscribed Circle, 0.197 in Thickness, 1/2 in Width, 1/2 in Length, HQ Chipbreaker, 0.031 in Corner Radius, 15 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: SDMT 1205PDR-HQ-M IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationCountersinking, Facing, Plunging and Recessing, Shouldering and Slotting
ChipbreakerHQ
Corner Radius0.031 in
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle1/2 in
Insert Size1205
Insert StyleSDMT
ISO CodeSDMT 1205PDR-HQ-M IC328
Lead Angle15 deg
Length1/2 in
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIQUAD
ShapeSquared
Thickness0.197 in
Width1/2 in
