Iscar ISCAR 5603559

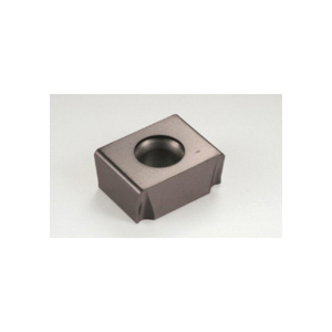

Iscar 5603559 TANGSLOT 4-Cutting Edge Milling Insert, ANSI Code: LNET 125508-TN, LNET Insert, 125508 Insert, Manufacturers Grade: IC928

Invoice description: Lnet 125508-tn Ic928

UNSPSC: 23291601
Manufacturer PN: 5603559
$31.01 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, 4-Cutting Edge, Series: TANGSLOT, LNET Insert, 125508 Insert, 3/8 in Inscribed Circle, 0.217 in Thickness, 3/8 in Width, 1/2 in Length, 0.031 in Corner Radius, Manufacturers Grade: IC928, ANSI Code: LNET 125508-TN, ISO Code: LNET 12-TN

  • Features

  • The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface

Specifications

ApplicationFor slotting and precision grooving cutters and milling
ANSI CodeLNET 125508-TN
Corner Radius0.031 in
Inscribed Circle3/8 in
Insert Size125508
Insert StyleLNET
ISO CodeLNET 12-TN
Length1/2 in
Manufacturers GradeIC928
SeriesTANGSLOT
Thickness0.217 in
Type4-Cutting Edge
Width3/8 in

Additional Information

Standards/ApprovalISO 13399
