Iscar ISCAR 5603551

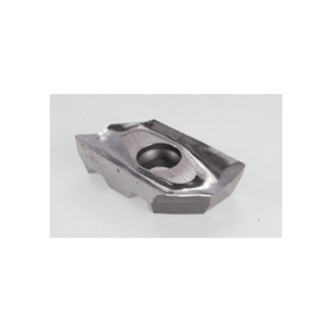

Iscar 5603551 HELIALU Helical Cutting Edge Milling Insert, ANSI Code: HM90 AXCR 150504R-P, HM90 Insert, 150504 Insert, Manufacturers Grade: IC28
Invoice description:
Hm90 Axcr 150504r-p Ic28
Factory Order
Iscar Milling Insert, Helical Cutting Edge, Series: HELIALU, HM90 Insert, 150504 Insert, 10 mm Inscribed Circle, 5 mm Thickness, 19.2 mm Length, 0.4 mm Corner Radius, Manufacturers Grade: IC28, ANSI Code: HM90 AXCR 150504R-P, ISO Code: HM90 AXCR 1505
Features
- HELIALU super positive inserts with a polished rake, for machining aluminum
Specifications
ApplicationMilling
ANSI CodeHM90 AXCR 150504R-P
Corner Radius0.4 mm
Inscribed Circle10 mm
Insert Size150504
Insert StyleHM90
ISO CodeHM90 AXCR 1505
Length19.2 mm
Manufacturers GradeIC28
SeriesHELIALU
Thickness5 mm
TypeHelical Cutting Edge
Additional Information
Standards/ApprovalISO 13399
