Iscar ISCAR 5603507

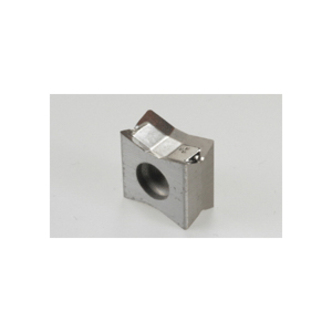

Iscar 5603507 TANGMILL TANGENTIAL LINE Milling Insert, LNAR Insert, 1106 Insert, Carbide, Manufacturers Grade: IC07, Rectangle Shape, Material Grade: M, N, S

UNSPSC: 23242107
Manufacturer PN: 5603507
$32.56 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: TANGMILL TANGENTIAL LINE, LNAR Insert, 1106 Insert, Rectangle Shape, 10.72 mm Thickness, 6 mm Width, 11.16 mm Length, P Chipbreaker, 0.5 mm Corner Radius, Positive Rake, 0 deg Lead Angle, Manufacturers Grade: IC07, ISO Code: LNAR 1106 PN-N-P IC07, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: M, N, S, Stainless Steel Austenitic and Duplex, Non-Ferrous Metals and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Chamfering and Bottom Deburring, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerP
Corner Radius0.5 mm
FinishUncoated
Hand of InsertNeutral
Insert Size1106
Insert StyleLNAR
ISO CodeLNAR 1106 PN-N-P IC07
Lead Angle0 deg
Length11.16 mm
Manufacturers GradeIC07
MaterialCarbide
Material ApplicationStainless Steel Austenitic and Duplex, Non-Ferrous Metals and High Temperature Alloys
Material GradeM, N, S
RakePositive
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness10.72 mm
Width6 mm
