Iscar ISCAR 5603479

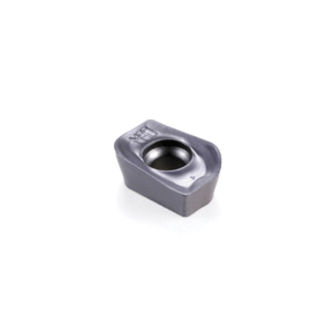

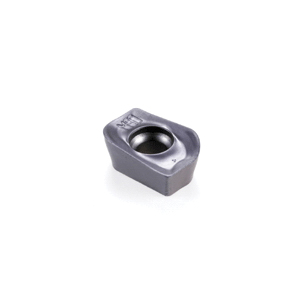

Iscar 5603479 HELI2000 Milling Insert, ADKT Insert, 150550 Insert, Carbide, Manufacturers Grade: IC908, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S

Invoice description: Hm90 Adkt 150550-pdr 908

UNSPSC: 23242107

Manufacturer PN: 5603479

^$29.46 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

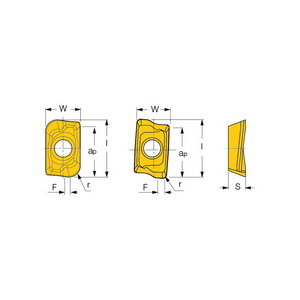

Iscar Milling Insert, Series: HELI2000, ADKT Insert, 150550 Insert, 85 deg Parallelogram, 5.75 mm Thickness, 9.65 mm Width, 14.85 mm Length, 5 mm Corner Radius, 15 deg Lead Angle, Manufacturers Grade: IC908, ISO Code: HM90 ADKT 150550-PDR IC908, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationCounterboring, Countersinking, Drill Mill, Facing, Rampdown, Shouldering, Plunging and Recessing, Slanted Shoulder and Chamfer

Corner Radius5 mm

FinishPVD-TiAlN Coated

Hand of InsertRight

Insert Size150550

Insert StyleADKT

ISO CodeHM90 ADKT 150550-PDR IC908

Lead Angle15 deg

Length14.85 mm

Manufacturers GradeIC908

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesHELI2000

Shape85 deg Parallelogram

Thickness5.75 mm

Width9.65 mm
