Iscar ISCAR 5603477

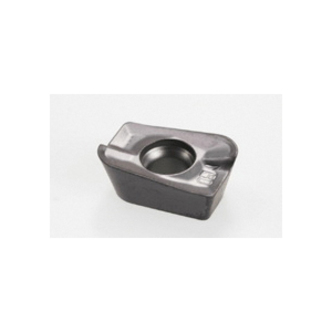

Iscar 5603477 HELI2000 Single Sided Milling Insert, ADKT Insert, 150532 Insert, Carbide, Manufacturers Grade: IC908, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S

Invoice description: Hm90 Adkt 150532-pdr 908

UNSPSC: 23242107

Manufacturer PN: 5603477

^$29.46 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

Iscar Milling Insert, Single Sided, Series: HELI2000, ADKT Insert, 150532 Insert, 85 deg Parallelogram, 9.52 mm Inscribed Circle, 5.85 mm Thickness, 9.65 mm Width, 15.2 mm Length, PDR Chipbreaker, 3.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: HM90 ADKT 150532-PDR IC908, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationCounterboring, Countersinking, Drill Mill, Facing, Rampdown, Shouldering, Plunging and Recessing, Slanted Shoulder and Chamfer

ChipbreakerPDR

Corner Radius3.2 mm

FinishPVD-TiAlN Coated

Hand of InsertRight

Inscribed Circle9.52 mm

Insert Size150532

Insert StyleADKT

ISO CodeHM90 ADKT 150532-PDR IC908

Length15.2 mm

Manufacturers GradeIC908

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesHELI2000

Shape85 deg Parallelogram

Thickness5.85 mm

TypeSingle Sided

Width9.65 mm
