Iscar ISCAR 5603464

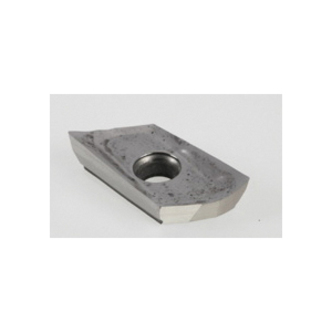

Iscar 5603464 HELIALU Single Sided Milling Insert, APCR Insert, 220605 Insert, Carbide, Manufacturers Grade: IC28, 85 deg Parallelogram Shape, Material Grade: N

UNSPSC: 23242107
Manufacturer PN: 5603464
$72.88 EA
Factory Order
Estimated to ship in 14 days
QTY:

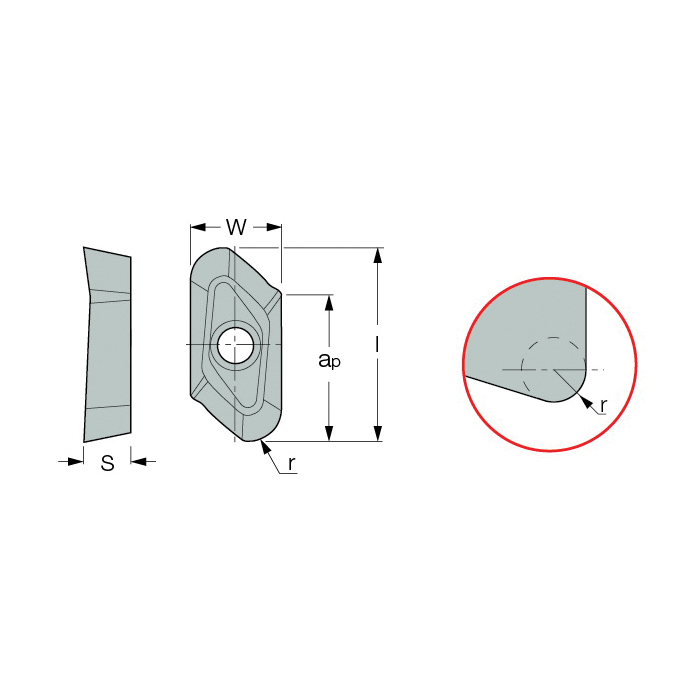

Iscar Milling Insert, Single Sided, Series: HELIALU, APCR Insert, 220605 Insert, 85 deg Parallelogram, 6.9 mm Thickness, 13.9 mm Width, 30.5 mm Length, P Chipbreaker, 0.5 mm Corner Radius, Positive Rake, Manufacturers Grade: IC28, ISO Code: HM90 APCR 220605R-P IC28, Right Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application

Specifications

ApplicationFacing, Helical Interpolation, Profiling, Shouldering, Slotting and Rampdown
ChipbreakerP
Corner Radius0.5 mm
FinishUncoated
Hand of InsertRight
Insert Size220605
Insert StyleAPCR
ISO CodeHM90 APCR 220605R-P IC28
Length30.5 mm
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
RakePositive
SeriesHELIALU
Shape85 deg Parallelogram
Thickness6.9 mm
TypeSingle Sided
Width13.9 mm
