Iscar ISCAR 5603460

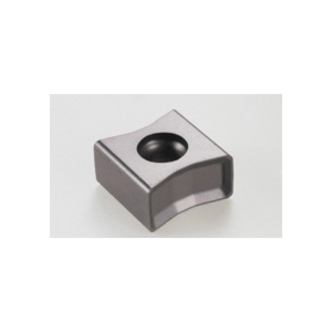

Iscar 5603460 TANGMILL TANGENTIAL LINE Milling Insert, LNKX Insert, 1106 Insert, Carbide, Manufacturers Grade: IC928, Rectangle Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5603460
$32.92 EA
Factory Order
Estimated to ship in 14 days
QTY:

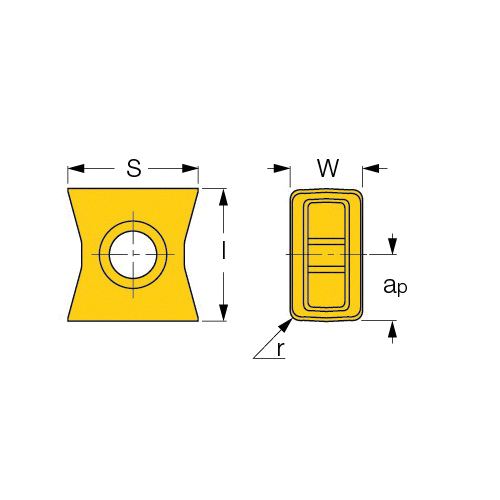

Iscar Milling Insert, Series: TANGMILL TANGENTIAL LINE, LNKX Insert, 1106 Insert, Rectangle Shape, 11 mm Thickness, 6 mm Width, 11.16 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, Positive Rake, Manufacturers Grade: IC928, ISO Code: LNKX 1106PN-N MM IC928, Neutral Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Chamfering and Bottom Deburring, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerMM
Corner Radius0.8 mm
FinishPVD-TiAlN Coated
Hand of InsertNeutral
Insert Size1106
Insert StyleLNKX
ISO CodeLNKX 1106PN-N MM IC928
Length11.16 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesTANGMILL TANGENTIAL LINE
ShapeRectangle
Thickness11 mm
Width6 mm
