Iscar ISCAR 5603442

Iscar 5603442 FEEDMILL Single Sided Milling Insert, WOMT Insert, 09T320 Insert, Carbide, Manufacturers Grade: IC908, 80 deg Trigon Shape, Material Grade: H, K, M, P, S

Invoice description: Ff Womt 09t320t Ic908

UNSPSC: 23242107

Manufacturer PN: 5603442

^$26.35 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

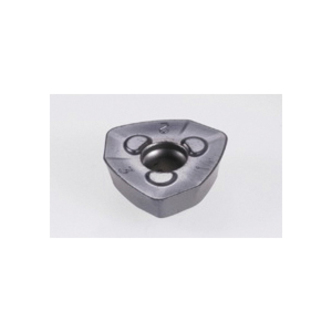

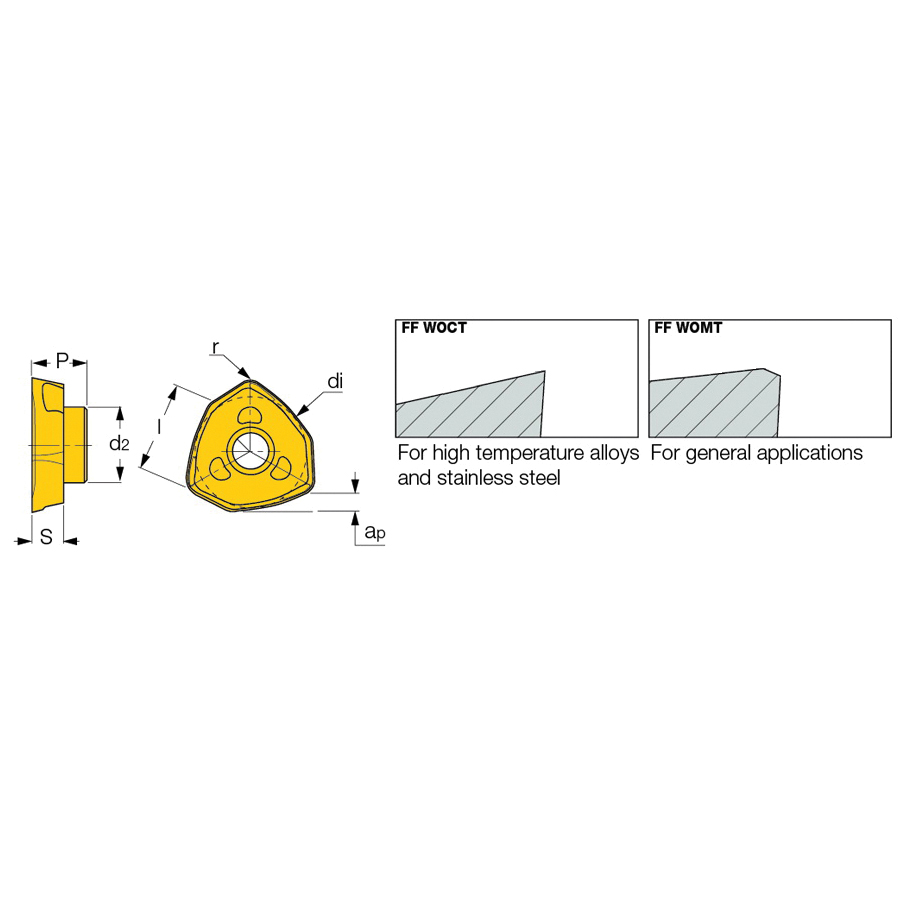

Iscar Milling Insert, Single Sided, Series: FEEDMILL, WOMT Insert, 09T320 Insert, 80 deg Trigon, 14.5 mm Inscribed Circle, 6.5 mm Thickness, T Chipbreaker, 2 mm Corner Radius, Positive Rake, Manufacturers Grade: IC908, ISO Code: FF WOMT 09T320T IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Features
Positive rake inserts for fast feed machining at small depths of cut
Designed with a cylinder on bottom that is seated in a mating hole in the pocket

Specifications

ApplicationFacing, Fast Feed Milling, Helical Interpolation, Plunging and Recessing, Profiling, Rampdown and Side Plunging

ChipbreakerT

Corner Radius2 mm

FinishPVD-TiAlN Coated

Inscribed Circle14.5 mm

Insert Size09T320

Insert StyleWOMT

ISO CodeFF WOMT 09T320T IC908

Manufacturers GradeIC908

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

RakePositive

SeriesFEEDMILL

Shape80 deg Trigon

Thickness6.5 mm

TypeSingle Sided
